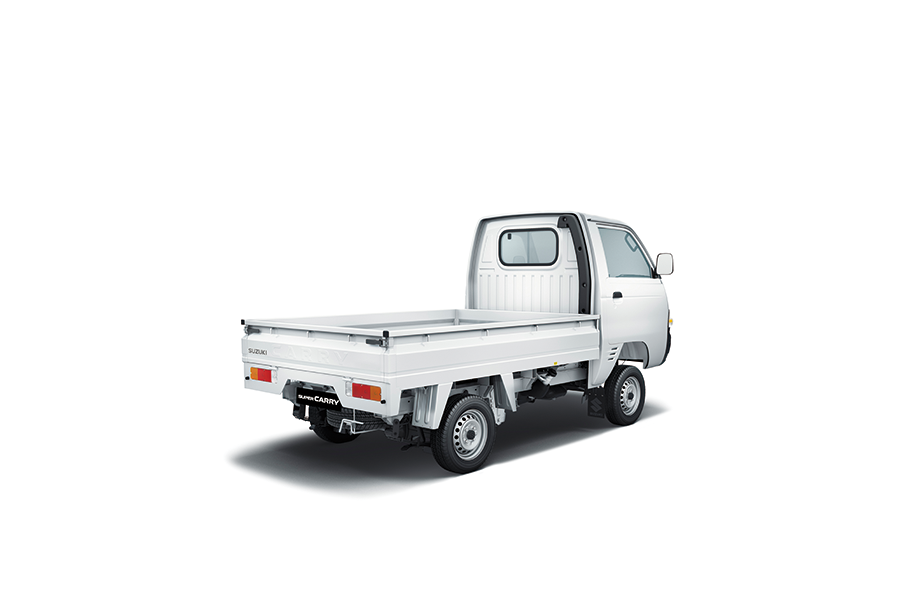

Super Carry

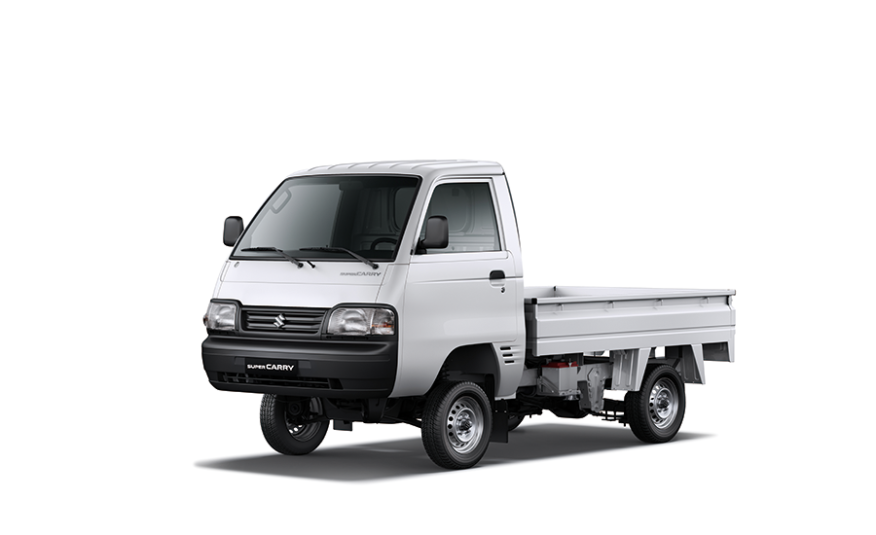

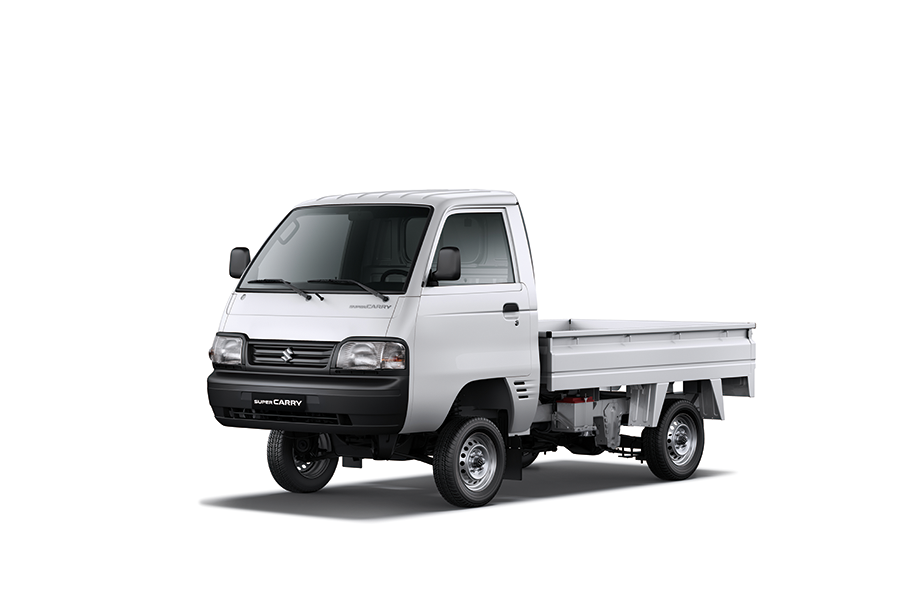

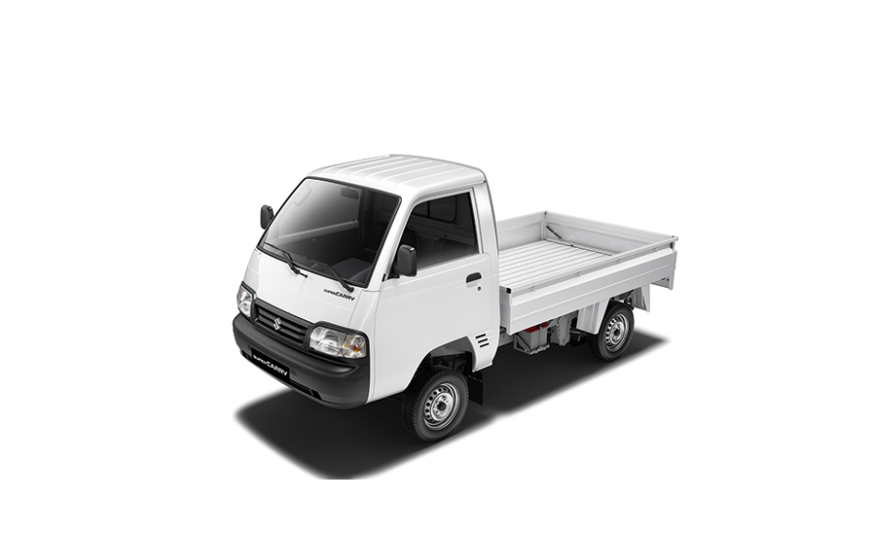

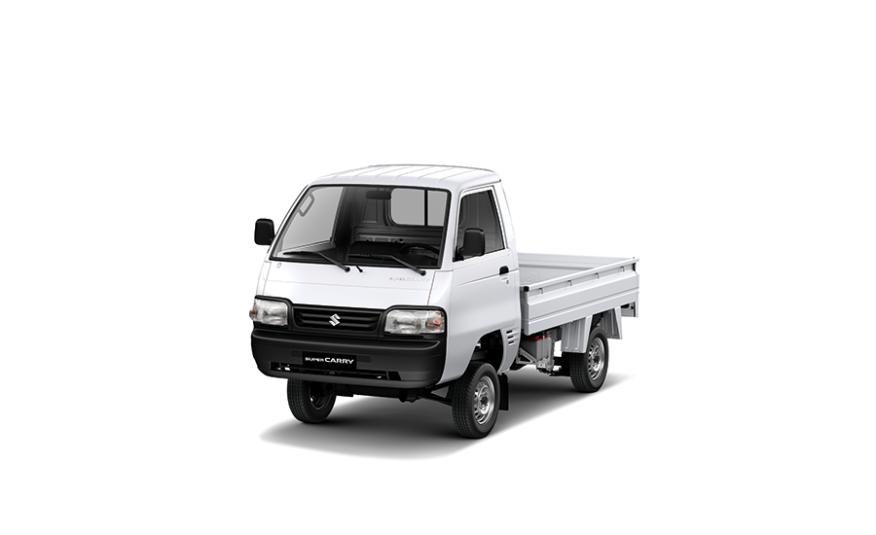

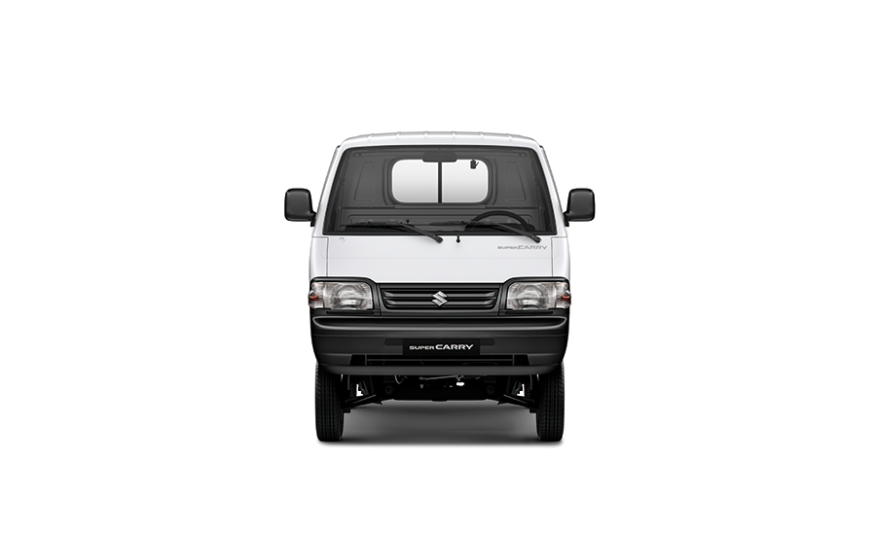

Suzuki Super Carry Vehicle Overview
- Compact and Efficient Design: The Suzuki Super Carry is designed for urban and rural settings, providing a compact yet robust vehicle ideal for various transportation needs.
- Engine Performance: Equipped with a 1.2L petrol engine, the Super Carry delivers reliable performance with a maximum output of 59 kW at 6,000 rpm and a torque of 104 N·m at 2,900 rpm, ensuring smooth operation even under heavy loads.

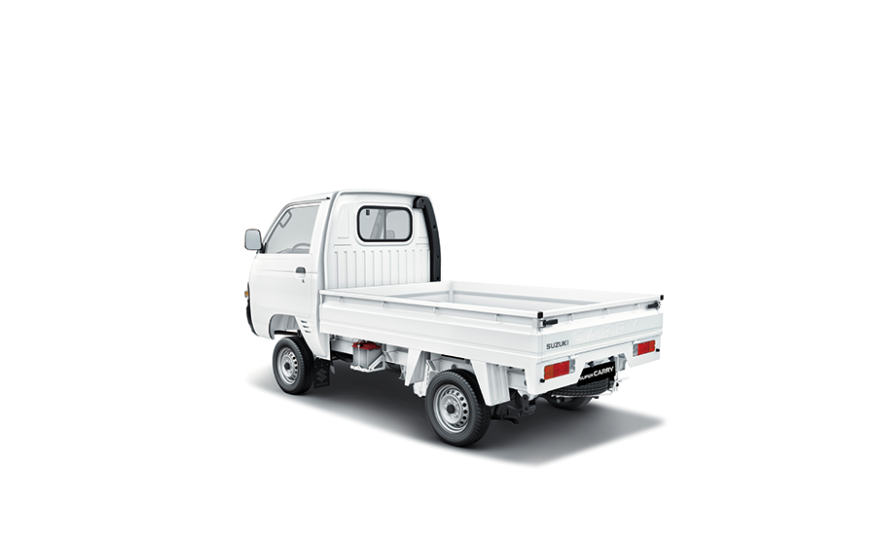

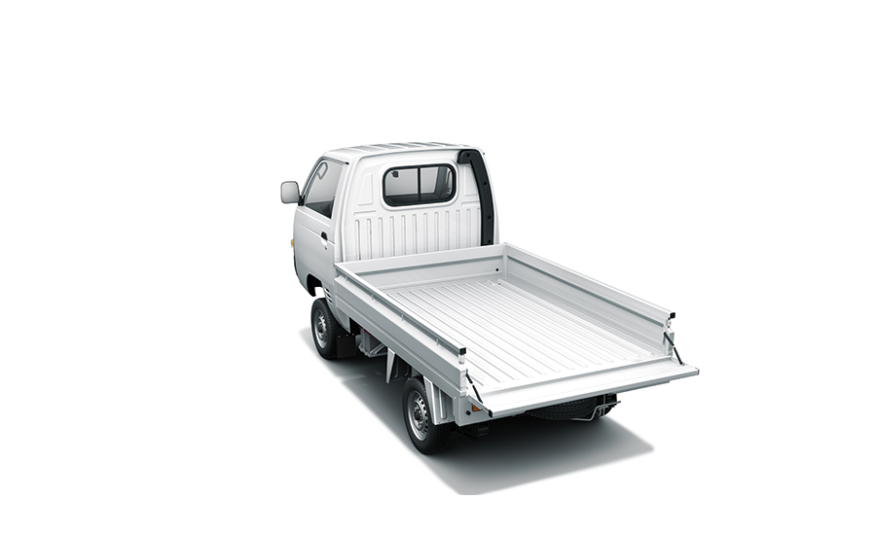

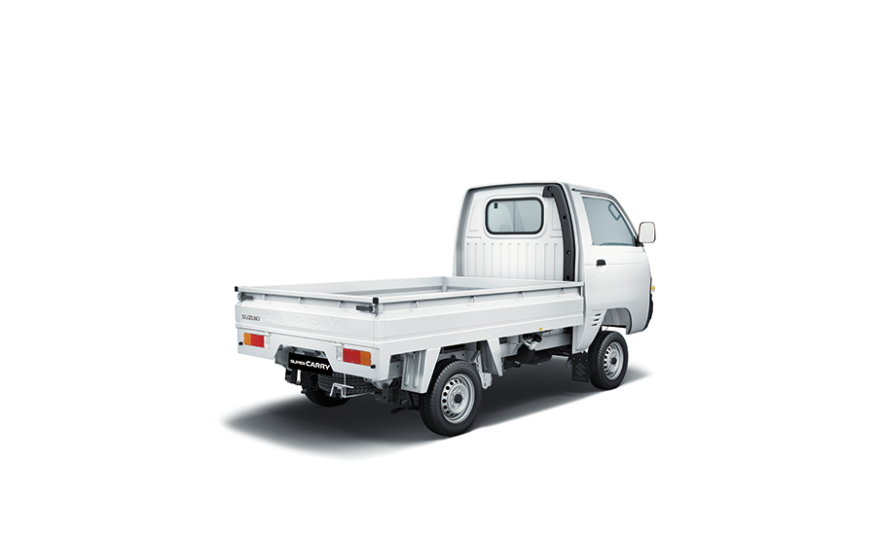

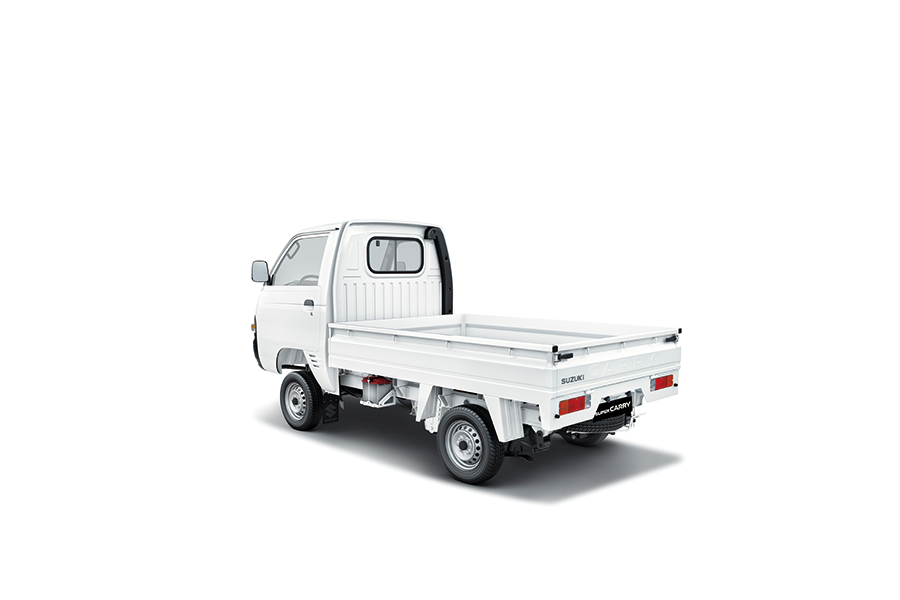

- Spacious Cargo Bed: With a cargo bed length of 2,183 mm, width of 1,488 mm, and height of 300 mm, the Super Carry offers ample space for transporting goods, making it suitable for small businesses and logistics.
- Durable Build: The vehicle's robust body type and chassis, featuring a MacPherson strut with coil spring front suspension and rigid axle with leaf spring rear suspension, provide stability and durability on various terrains.
- Efficient Transmission: The 5-speed manual transmission (5MT) ensures efficient power distribution and smooth gear transitions, contributing to better fuel efficiency and driving comfort.
- Safety and Control: The Super Carry is equipped with ventilated disc brakes at the front and drum brakes at the rear, offering reliable stopping power. The rack and pinion steering system provides precise control and handling.
- Compact Dimensions: The vehicle's overall length of 3,800 mm, width of 1,562 mm, and height of 1,883 mm make it easy to maneuver in tight spaces, while the minimum turning radius of 4.3 meters enhances its agility.
- Payload Capacity: With a maximum payload capacity of 730 kg and a gross vehicle weight of 1,600 kg, the Super Carry is capable of handling substantial loads, making it a versatile choice for various hauling needs.
- Fuel Efficiency: The fuel tank capacity of 30 liters, combined with the efficient multipoint fuel injection system, ensures that the Super Carry can cover long distances with fewer refueling stops.
- Comfort and Convenience: The vehicle accommodates two passengers comfortably, providing essential features for a practical and comfortable driving experience.
- 1.2 DUALJET engine
- 12V Accessory Socket
- Ample Space for Legs
- Assist Grips
- Detachable Cargo Bed for Easy Repair
- Driver's Pocket
- Driver’s Seat Slide (7 positions / 90mm)
- Functional Dashboard
- Rear Window (slide opening and closing)Rear Window (slide opening and closing)
- Sun Visors
- Upper Tray
| Major Specifications | Transmission | ||
| Steering | LHD | Type | 5MT |
| Drive system | 2WD | Gear ratio 1st | 6.329 |
| Engine | Petrol | Gear ratio 2nd | 2.745 |
| Engine capacity | 1.2L | Gear ratio 3rd | 1.806 |
| Body type | Truck | Gear ratio 4th | 1.265 |
| Dimensions | Gear ratio 5th | 1 | |
| Overall length | 3,800 | Gear ratio Reverse | 5.152 |
| Overall width | 1,562 | Final gear ratio | 3.727 |
| Overall height | 1,883 | Engine | |
| Wheelbase | 2,110 | Type | K12N |
| Front overhang | 925 | Number of cylinders | 4 |
| Rear overhang | 765 | Number of valves | 16 |
| Tread Front | 1,345 | Piston displacement | 1,197 cm³ |
| Tread Rear | 1,330 | Bore x stroke | 73 x 71.5 mm |
| Minimum turning radius | 4.3 m | Compression ratio | 12 |
| Cargo bed length | 2,183 | Maximum output | 59 kW @ 6,000 rpm |
| Cargo bed width | 1,488 | Maximum torque | 104 N·m @ 2,900 rpm |
| Cargo bed height | 300 | Fuel distribution | Multipoint injection |
| Minimum ground clearance | 175 | Weights | |
| Chassis | Kerb weight | 870 | |
| Steering | Rack & Pinion | Maximum payload | 730 |
| Brakes Front | Ventilated disc | Gross vehicle weight | 1,600 |
| Brakes Rear | Drum, leading & trailing | Capacities | |
| Suspension Front | MacPherson strut with coil spring | Seating capacity | 2 persons |
| Suspension Rear | Rigid axle with leaf spring | Fuel tank capacity | 30 litres |
| Tyres | 155R13LT8PR |
Suzuki Super Carry Vehicle General Information
The Suzuki Super Carry is a versatile and compact vehicle designed to meet the diverse transportation needs of both urban and rural environments. With its robust build and efficient performance, it stands out as a reliable workhorse for small businesses, delivery services, and personal use. The Super Carry's compact dimensions make it easy to maneuver through tight city streets, while its spacious cargo bed ensures it can handle substantial loads with ease.
Under the hood, the Super Carry is powered by a 1.2L petrol engine that delivers a maximum output of 59 kW at 6,000 rpm and a torque of 104 N·m at 2,900 rpm. This engine configuration ensures smooth and reliable performance, even when the vehicle is fully loaded. The multipoint fuel injection system enhances fuel efficiency, making the Super Carry an economical choice for long-distance transportation.
The vehicle's design emphasizes durability and practicality. The cargo bed, measuring 2,183 mm in length, 1,488 mm in width, and 300 mm in height, offers ample space for transporting a variety of goods. Whether used for deliveries, construction materials, or agricultural products, the Super Carry can handle the job. The sturdy chassis features a MacPherson strut with coil spring front suspension and a rigid axle with leaf spring rear suspension, providing stability and a smooth ride on different terrains.
Safety and control are paramount in the Super Carry. The vehicle is equipped with ventilated disc brakes at the front and drum brakes at the rear, ensuring reliable stopping power. The rack and pinion steering system offers precise handling, making the vehicle easy to control in various driving conditions. The overall length of 3,800 mm, width of 1,562 mm, and height of 1,883 mm, along with a minimum turning radius of 4.3 meters, contribute to its excellent maneuverability.
The Super Carry also boasts a practical and comfortable interior, with seating for two passengers. Its 5-speed manual transmission (5MT) ensures efficient power distribution and smooth gear transitions, enhancing the driving experience. The vehicle's fuel tank capacity of 30 liters allows for extended trips with fewer stops for refueling, making it a convenient choice for daily operations.
In summary, the Suzuki Super Carry is a dependable, efficient, and versatile vehicle that meets the demands of various transportation tasks. Its compact size, powerful engine, and durable design make it an excellent choice for anyone in need of a reliable cargo vehicle. Whether for business or personal use, the Super Carry delivers on performance, practicality, and cost-effectiveness.
