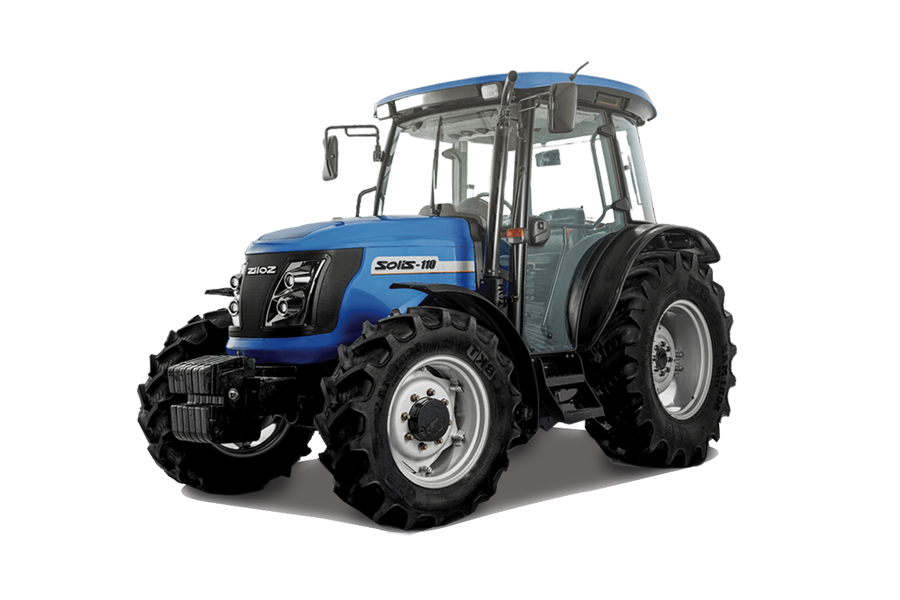

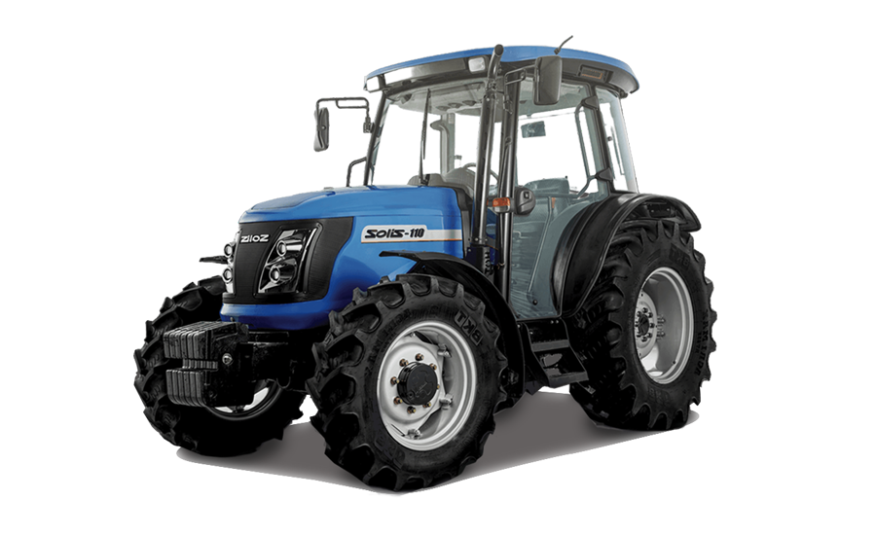

Solis 110 HP Tractor Overview
- Engine: 110 HP, 4-cylinder turbocharged for high performance.
- Transmission: Synchronized system with multiple gear options.
- Hydraulics: High lifting capacity with powerful hydraulics.
- PTO: Standard and economy options for flexibility.
- Dimensions: Heavy-duty, long wheelbase, and adequate ground clearance.
- Comfort: Ergonomic cabin with air conditioning and power steering.
- Attachments: Compatible with a variety of implements, easy attachment system.
- Safety: ROPS, seat belts, and accessible maintenance points.
- Applications: Ideal for plowing, hauling, operating implements, and more.
- 24F+24R SYNCHROMESH TRANSMISSION
- 4 CYLINDER TURBO CHARGED WITH INTERCOOLER ENGINE
- HEAVY LIFT CAPACITY
- INTEGRATED SAFETY HVAC CABIN (OPTIONAL)
- SMART TECH FEATURES
| FEATURES | FEATURES | ||
| Engine | Safety Switch | ||
| HP Category | 110 HP | Neutral Safety Switch | Standard |
| No. of Cylinders | 4 | P.T.O Safety Switch | Standard |
| Displacement cc | 4087 | Clutch Safety Switch | Standard |
| Aspiration | Turbocharged with Intercooler | CAPACITY (LTRS)(+/-5%) APPROX | |
| Bore/Stroke (mm) | 105/118 | ||
| Rated RPM | 2200 | Fuel Tank (Ltr.) | 117 |
| Air Cleaner | Dry Air Cleaner | TURNING RADIUS IN (m) | |
| Max Torque | 430@1300 | ||
| TRANSMISSION | Without Brakes & with Brake | 5.65 | |
| TYRE | |||
| Drive | 4WD | ||
| Clutch | Double Clutch | Tyres | Front: 380/85R24 Rear: 460/85R34 |
| Gearbox | 24F + 24R | DIMENSION & WEIGHT (+/-5%) | |
| Transmission | Synchromesh Shuttle Transmission | ||
| SPEED (FORWARD) | Gross Weight (Kg) | 4280 | |
| Wheel Base (mm) | 2376 | ||
| Min Speed (km/h) | 0.58 @ 2200 erpm | Total Length (mm) | 4350 |
| Max Speed (km/h) | 36.69 @ 2200 erpm | Total Width (mm) | 2180-2500 |
| Driver Seat | Mechanical Suspension | Height (mm) upto ROPS | 2968 |
| BRAKES | Ground Clearance (mm) min | 488 | |
| Front Track, (mm), min.-max. | 1370-2100 | ||
| Brakes | Wet Disc Brakes | Rear Track, (mm), min.-max. | 1225-2225 |
| Type of Actuation | Hydraulic Assisted Brakes | OTHERS | |
| Hand Brake | Mechanical | ||
| Trailer Brakes | Hydraulic Trailer Brakes | Fuel Indicator Gauge | Standard |
| DIFFERENTIAL LOCK | Registration Plate with Light | Standard | |
| Front Tow Hook | Standard | ||
| Differential Lock | Yes (Electrical Switch Operated) | Front & Rear Weights | Front = 72 Kg Base Weight+10*31 Kg |
| PTO | Rear = 40x1 Kg Each Wheel | ||
| Drawbar | Standard | ||
| PTO (RPM) | 540/540 E | ROPS | Standard |
| PTO (Actuation) | Mechanical | Canopy | Optional |
| STEERING | Cabin | Optional | |
| OPTIONAL FEATURES | |||
| Steering | Power | ||
| ELECTRICAL | Front Mudgaurd | Standard | |
| Weight Optional | Rear Weight 40x2 Kg Each Wheel | ||
| Battery | 12V, 110Ah | ||
| Alternator | 12V, 90Amp | ||
| Seven Pin Trailer Socket | Standard | ||
| HYDRAULICS | |||
| Position Control | Standard | ||
| Automatic Draft Control | Standard | ||
| 3 Point Linkage | Standard | ||
| Lifting Capacity (Kg) | 4500 | ||
| Auxiliary Hydraulic Circuit | 2DA+1DA with Detent |
