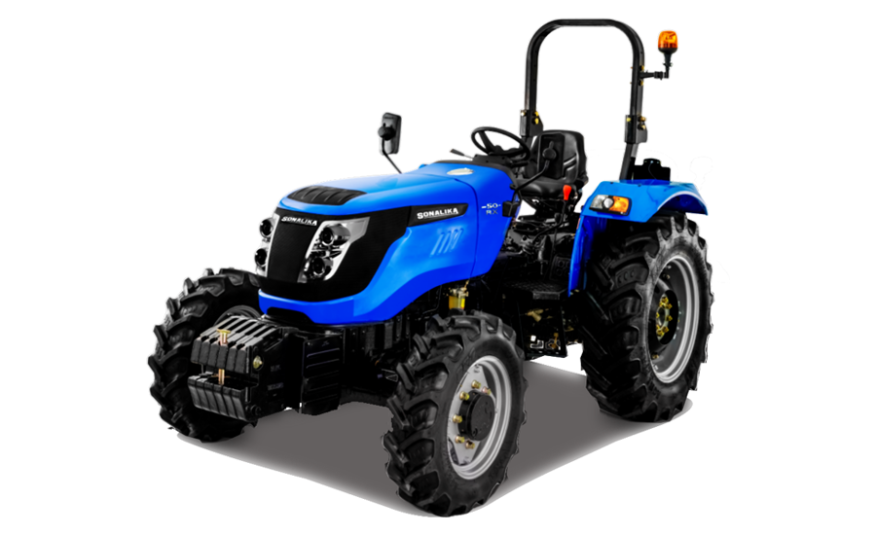

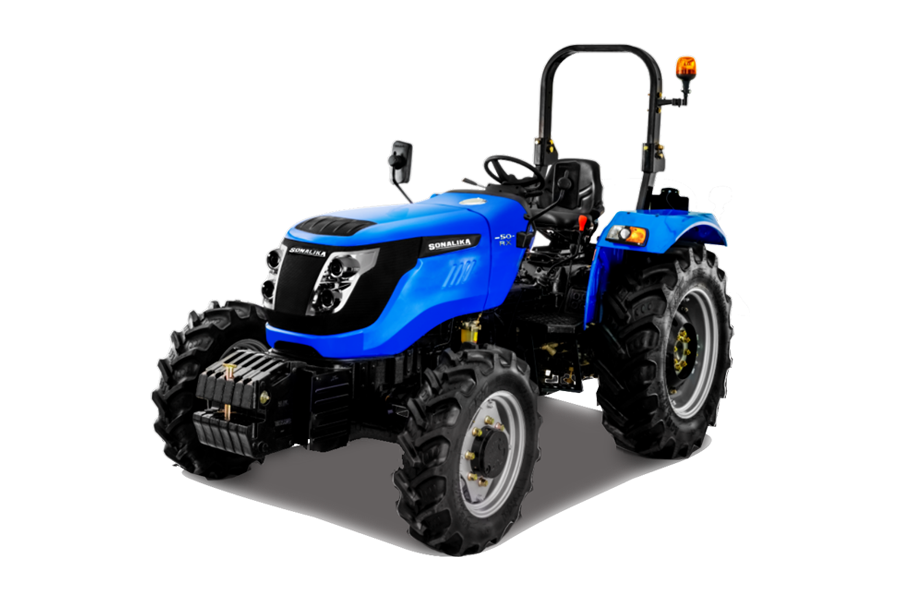

Sonalika 50 RX
Sonalika 50 RX Tractor Overview
- Engine: 52 HP, 3-cylinder diesel engine for reliable performance.
- Transmission: 8 forward and 2 reverse gears, constant mesh.
- Hydraulics: High lifting capacity suitable for various implements.
- PTO: 540 RPM standard PTO for versatile agricultural use.
- Dimensions: Sturdy build, optimal wheelbase, ample ground clearance.
- Comfort: Ergonomic cabin with power steering.
- Attachments: Compatible with a range of heavy-duty agricultural implements.
- Safety: Enhanced safety features, easy maintenance access.
- Applications: Ideal for medium to large-scale farming, heavy hauling, and diverse agricultural operations.
- AGILE HIGH BACKUP TORQUE ENGINE
- EASY FRONT AND LOADER ATTACHMENT
- HEAVY DUTY 2WD/4WD
- HEAVY LIFT CAPACITY
- SWIFT SHIFT TRANSMISSION®
FEATURES | |||
Model Description | SONALIKA-50 | SAFETY SWITCH | |
ENGINE | Clutch Safety Switch | Yes | |
Engine Type | Three Cylinder Natural Aspirated Engine | PTO Safety Switch | Yes |
HP Category | 50 | Neutral Safety Switch | Yes |
No. of Cylinders | 3 | CAPACITY (LTRS)(+/-5%) | |
Aspiration | Natural | Fuel tank (Lit) | 65 |
Cubic Capacity (cc) | 2893 | TURNING RADIUS | |
Rated RPM (+/-25mm) | 2100 | Without Brakes (m) | 3.7 |
Air cleaner | Dry Air Cleaner with Clogging sensor | TYRE | |
Cold Start | Yes | Front | 9.5-20 |
Max Torque (Nm) | 190@1200 RPM | Rear | 13.6-28 |
Exhaust | Underhood Downdraft silencer | DIMENSION & WEIGHT(+/-5%) | |
Underhood Upward | Weight(kg) | 2780 | |
TRANSMISSION | Wheel Base (mm) | 2175 | |
Drive | 2WD/4WD | Total Length (mm) | 3936 |
Clutch | Dual Clutch | Total Width (mm) | 1785 |
Gearbox | 8F+2R | Height (mm) Up to ROPS | 2488 |
Front Axle | 2WD/4WD | Min Ground Clearance (mm) | 293 |
Transmission | Swift Shift | Front Track (mm) | 1535 |
SPEED (FORWARD) | Rear Track (mm) | 1420 | |
Maximum Speed (Km/Hr) | 29.94@2100 | OTHERS | |
Minimum Speed (Km/Hr) | 2.27@2100 | Fuel Indicator gauge | Yes |
BRAKES | Front Toe Hook | Yes, inbuilt in front weight | |
Brakes | Oil Immersed Brake | Front & rear weights with std. Ballast | Base Weight 72Kg+Front 6X31 Kg and Rear 1X34 Kg on each wheel. |
Type of actuation | Mechanical | Trailer Hitch | Swinging Drawbar |
Parking Brake | Independent Type | ROPS | Yes |
DIFFERENTIAL LOCK | OPTIONAL FEATURES | ||
Differential lock | Yes, Foot Operated | Tyres (Radial Tyre) | Front 250/85R20, Rear 340/85R28 |
PTO | Cabin | Add on-Heater/HVAC | |
PTO (rpm) | 540 | Front Mudguard | Yes |
PTO (actuation) | Mechanical | ||
STEERING | |||
Steering | Power | ||
ELECTRICAL | |||
Battery | 12V, 88 Ah | ||
Alternator | 12V, 10 Amp | ||
Seven pin trailer socket | Yes | ||
HYDRAULICS | |||
3 point linkage | CAT-II | ||
Stay Bars | Adjustable | ||
Hydraulic lifting capacity | 1600 kg | ||
Auxiliary hydraulic circuit | 2DA | ||
Lift rods | Yes |
Sonalika 50 RX Tractor Overview
The Sonalika 50 RX Tractor is a versatile and powerful machine designed to meet the demands of medium to large-scale farming operations. It is equipped with a robust 52 HP, 3-cylinder diesel engine that ensures reliable performance and fuel efficiency. This powerful engine allows the tractor to handle a variety of tasks, including plowing, tilling, and hauling, making it an ideal choice for farmers who require a dependable and efficient workhorse for their agricultural needs.
The tractor features a well-engineered transmission system with 8 forward and 2 reverse gears, providing flexibility and control across different terrains and farming activities. The constant mesh transmission ensures smooth and seamless gear shifts, enhancing the overall driving experience and productivity. The Sonalika 50 RX is also equipped with a high-capacity hydraulic system that can handle heavy-duty implements, making it compatible with a wide range of agricultural tools such as cultivators, harrows, and trailers.
Comfort and ease of operation are key design elements of the Sonalika 50 RX Tractor. The ergonomic cabin is designed to reduce operator fatigue, featuring intuitive controls and power steering for easy maneuverability. This ensures that farmers can work for extended periods without discomfort. The tractor’s suspension system further enhances ride quality, even on rough and uneven terrains.
Safety is also a priority with the Sonalika 50 RX. The tractor includes robust braking systems and a well-balanced design to ensure stable and safe operation under various conditions. The combination of advanced safety features and durable construction ensures that operators can perform their tasks with confidence and peace of mind.
Overall, the Sonalika 50 RX Tractor is a highly capable and reliable agricultural machine that offers a blend of power, efficiency, and versatility. Its strong engine, efficient transmission, and high lifting capacity make it suitable for a wide range of farming applications, while its emphasis on comfort and safety ensures a superior operating experience. This tractor is a valuable asset for farmers looking to enhance their productivity and efficiency in medium to large-scale farming operations.
