Solis 110

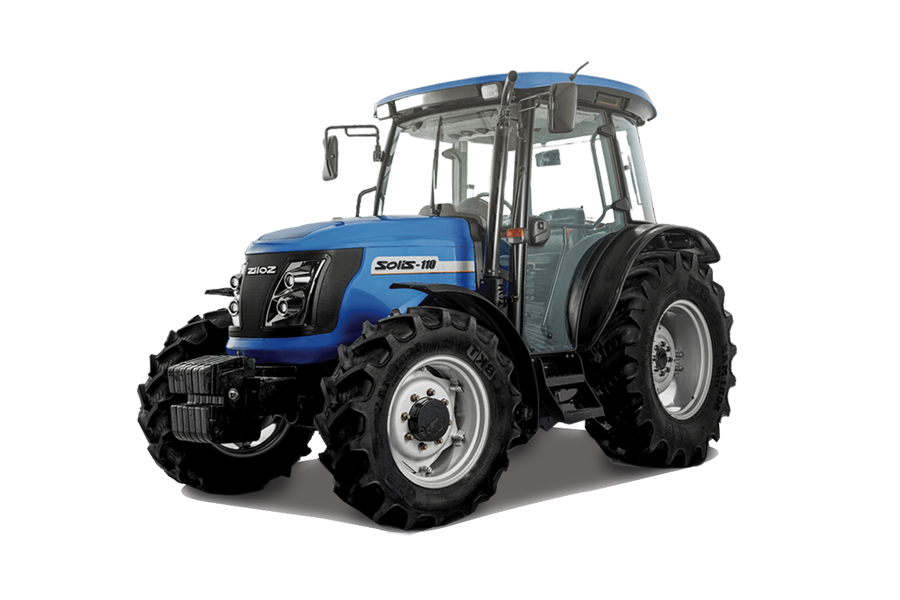

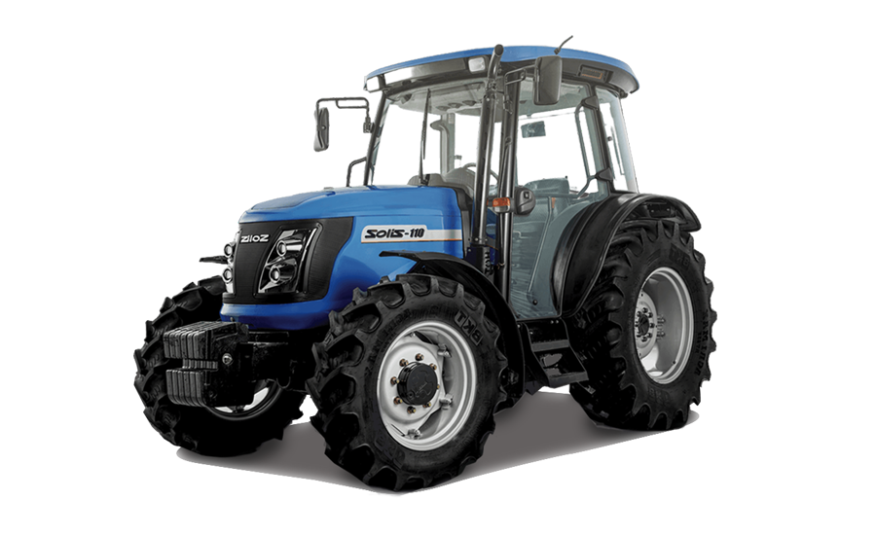

Solis 110 HP Tractor Overview
- Engine: 110 HP, 4-cylinder turbocharged for high performance.
- Transmission: Synchronized system with multiple gear options.
- Hydraulics: High lifting capacity with powerful hydraulics.
- PTO: Standard and economy options for flexibility.
- Dimensions: Heavy-duty, long wheelbase, and adequate ground clearance.
- Comfort: Ergonomic cabin with air conditioning and power steering.
- Attachments: Compatible with a variety of implements, easy attachment system.
- Safety: ROPS, seat belts, and accessible maintenance points.
- Applications: Ideal for plowing, hauling, operating implements, and more.
- 24F+24R SYNCHROMESH TRANSMISSION
- 4 CYLINDER TURBO CHARGED WITH INTERCOOLER ENGINE
- HEAVY LIFT CAPACITY
- INTEGRATED SAFETY HVAC CABIN (OPTIONAL)
- SMART TECH FEATURES
FEATURES | FEATURES | ||
Engine | Safety Switch | ||
HP Category | 110 HP | Neutral Safety Switch | Standard |
No. of Cylinders | 4 | P.T.O Safety Switch | Standard |
Displacement cc | 4087 | Clutch Safety Switch | Standard |
Aspiration | Turbocharged with Intercooler | CAPACITY (LTRS)(+/-5%) APPROX | |
Bore/Stroke (mm) | 105/118 | ||
Rated RPM | 2200 | Fuel Tank (Ltr.) | 117 |
Air Cleaner | Dry Air Cleaner | TURNING RADIUS IN (m) | |
Max Torque | 430@1300 | ||
TRANSMISSION | Without Brakes & with Brake | 5.65 | |
TYRE | |||
Drive | 4WD | ||
Clutch | Double Clutch | Tyres | Front: 380/85R24 Rear: 460/85R34 |
Gearbox | 24F + 24R | DIMENSION & WEIGHT (+/-5%) | |
Transmission | Synchromesh Shuttle Transmission | ||
SPEED (FORWARD) | Gross Weight (Kg) | 4280 | |
Wheel Base (mm) | 2376 | ||
Min Speed (km/h) | 0.58 @ 2200 erpm | Total Length (mm) | 4350 |
Max Speed (km/h) | 36.69 @ 2200 erpm | Total Width (mm) | 2180-2500 |
Driver Seat | Mechanical Suspension | Height (mm) upto ROPS | 2968 |
BRAKES | Ground Clearance (mm) min | 488 | |
Front Track, (mm), min.-max. | 1370-2100 | ||
Brakes | Wet Disc Brakes | Rear Track, (mm), min.-max. | 1225-2225 |
Type of Actuation | Hydraulic Assisted Brakes | OTHERS | |
Hand Brake | Mechanical | ||
Trailer Brakes | Hydraulic Trailer Brakes | Fuel Indicator Gauge | Standard |
DIFFERENTIAL LOCK | Registration Plate with Light | Standard | |
Front Tow Hook | Standard | ||
Differential Lock | Yes (Electrical Switch Operated) | Front & Rear Weights | Front = 72 Kg Base Weight+10*31 Kg |
PTO | Rear = 40x1 Kg Each Wheel | ||
Drawbar | Standard | ||
PTO (RPM) | 540/540 E | ROPS | Standard |
PTO (Actuation) | Mechanical | Canopy | Optional |
STEERING | Cabin | Optional | |
OPTIONAL FEATURES | |||
Steering | Power | ||
ELECTRICAL | Front Mudgaurd | Standard | |
Weight Optional | Rear Weight 40x2 Kg Each Wheel | ||
Battery | 12V, 110Ah | ||
Alternator | 12V, 90Amp | ||
Seven Pin Trailer Socket | Standard | ||
HYDRAULICS | |||
Position Control | Standard | ||
Automatic Draft Control | Standard | ||
3 Point Linkage | Standard | ||
Lifting Capacity (Kg) | 4500 | ||
Auxiliary Hydraulic Circuit | 2DA+1DA with Detent |
