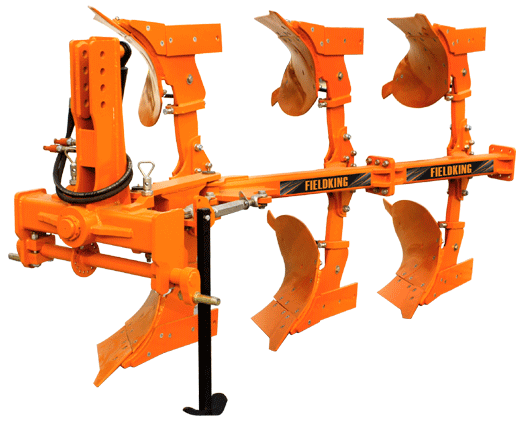

Reversible Mould Board Plough
- 10 mm thick for robust performance in tough soil conditions
- Boron steel tyne (80/3.1" x 36/1.4")
- Hydraulic turnover mechanism for easy and efficient turning at the headlands
- Point: Forged 100/3.9" x 15 mm
- quipped with 32213 and 33015 bearings for smooth operation and longevity
- Shear bolt system ensures protection against overload and damage
- Suitable for tractors ranging from 55 HP to 100 HP
| Model | Number of Furrows | Tyne (mm/inch) | Mould Board (mm) | Plough Shear (mm) | Point | Head Stock Bearing | Turnover Mechanism | Tllage Width (mm/inch) | Depth of Cut (max. mm/inch) | Safety | Weight (Kg/Lbs approx.) | Weight (kg./lbs. approx.) | Tractor Power (HP) |
| FKRMBPH-25-36-2 | 2 | 80/3.1" x 36/1.4" | 8 mm (T) | 10 mm (T) | 100/3.9" x 15 mm (T) Forged | 32213, 33015 | Hydraulic | 700/28" | 355 mm (14") | Shear Bolt | No | 430 kg (948 lbs) - 460 kg (1014 lbs) | 55-70 |
| FKRMBPH-25-36-3 | 3 (2 + 1 Optional) | 80/3.1" x 36/1.4" | 8 mm (T) | 10 mm (T) | 100/3.9" x 15 mm (T) Forged | 32213, 33015 | Hydraulic | 1050 mm (41") | 355 mm (14") | Shear Bolt | Yes | 550 kg (1210 lbs) - 630 kg (1386 lbs) | 75-100 |
The Reversible Mould Board Plough (RMBPH) series by Fieldking is engineered for high-performance agricultural operations, offering reliability, efficiency, and versatility for modern farming needs. Available in two models, FKRMBPH-25-36-2 and FKRMBPH-25-36-3 (with optional 2+1 configuration), these ploughs are designed to handle medium to heavy-duty tasks with ease.
Design and Construction:
Each model features an 80 mm (3.1 inches) x 36 mm (1.4 inches) boron steel tyne and an 8 mm thick mould board, ensuring durability and effective soil cutting capabilities. The 10 mm thick plough shear further enhances performance in tough soil conditions, providing robustness and longevity. Forged 100 mm (3.9 inches) x 15 mm points are designed for efficient soil penetration and turning, optimizing agricultural productivity.
Operational Features:
The head stock of the RMBPH series is equipped with 32213 and 33015 bearings, facilitating smooth operation and reducing wear over time. A hydraulic turnover mechanism enables convenient and efficient turning at the headlands, enhancing operational efficiency and reducing turnaround times during field operations.
Adjustable Parameters:
The tillage width of these ploughs is adjustable to accommodate varying field sizes and operational requirements. It ranges from 700 mm (28 inches) for the 2-furrow model (FKRMBPH-25-36-2) to 1050 mm (41 inches) for the 3-furrow model (FKRMBPH-25-36-3), ensuring versatility and flexibility in field coverage.
Depth and Safety:
The maximum depth of cut achievable with these models is 355 mm (14 inches), allowing for thorough soil turnover and preparation, essential for crop establishment and weed control. Safety is ensured with a shear bolt mechanism that protects against overload and potential damage, enhancing equipment longevity and reducing maintenance costs.
Specifications and Compatibility:
The weight of the ploughs ranges from approximately 430 kg (948 lbs) to 460 kg (1014 lbs) for the FKRMBPH-25-36-2, and from 550 kg (1210 lbs) to 630 kg (1386 lbs) for the FKRMBPH-25-36-3, depending on configuration and additional options. These ploughs are suitable for tractors with a power range of 55 HP to 100 HP, making them versatile for various agricultural applications and field conditions.
Conclusion:
The Fieldking Reversible Mould Board Plough series combines sturdy construction, advanced features, and operational flexibility to meet the demanding needs of modern farming. Whether for primary tillage, seedbed preparation, or residue management, these ploughs are designed to deliver consistent and efficient performance, contributing to increased productivity and profitability in agricultural operations.
