Phoenix Phoenix
Description
  • Make Ashok Leyland
  • Model Phoenix
  • Maximum Power 60 kW @ 3300 RPM
  • Displacement 1478cc
  • Fuel Tank Capacity 50 litres
  • Tyre 215/75 R15 LT
  • Front Suspension Overslung Parabolic (3 Leaves) - 2 Stage
  • Rear Suspension Overslung Semi-Elliptic (3+3 Leaves) - 2 Stage
  • Steering Power Assisted, Tiltable Column
  • Width/Length/Height (mm) 1842/5025/2061
  • Torque 190 Nm @ 1600-2400 RPM
  • Emission Euro III
  • Gearbox Fully Synchronized, 5 Speed Manual Gearbox with Cable Shift

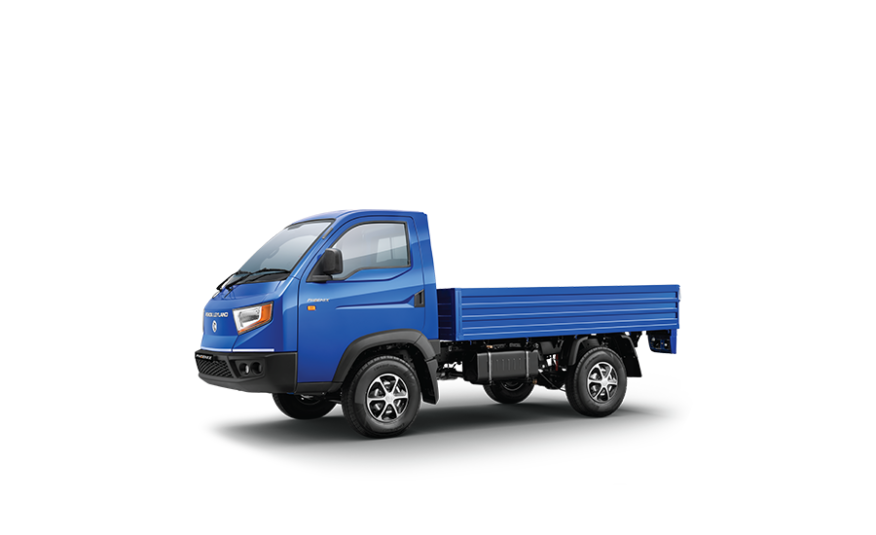

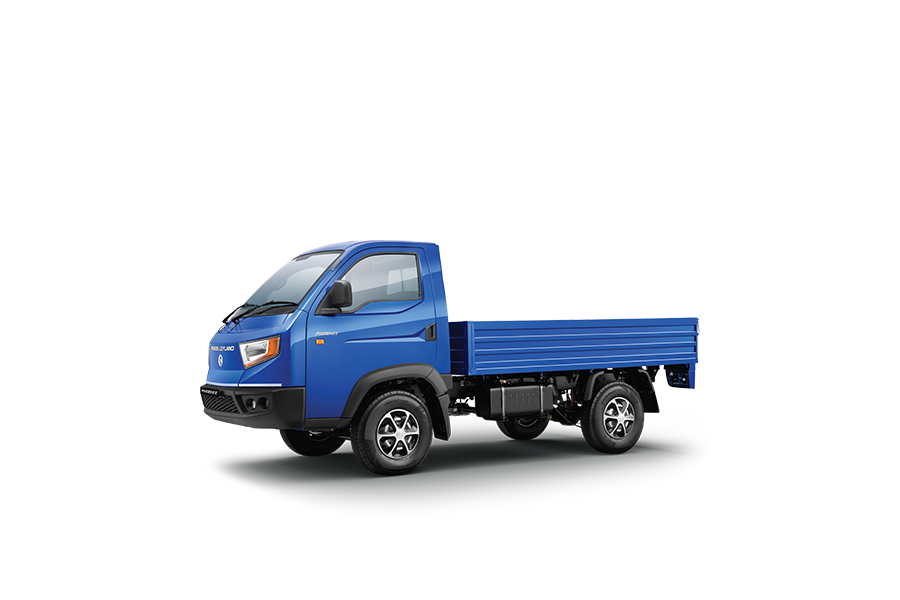

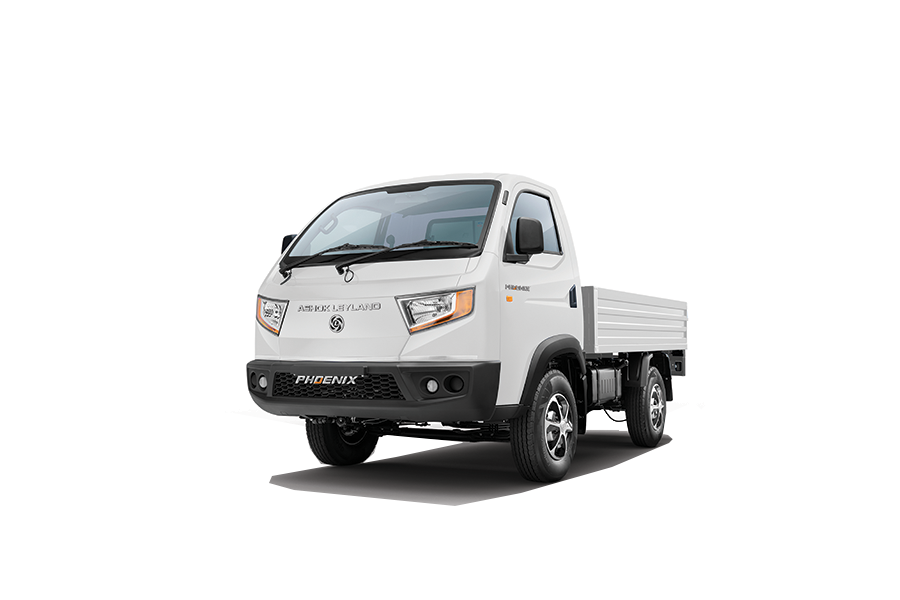

Ashok Leyland Phoenix Truck Overview

The Ashok Leyland Phoenix is a versatile and robust light commercial vehicle designed to cater to various transportation needs. Below is a detailed overview of its specifications and features:

Engine

  • Engine Type: 1.5l, 3 Cylinder Diesel Engine
  • Turbocharger: Turbo Charged Intercooled with Lean NOx Trap (LNT)
  • Displacement: 1478cc
  • Maximum Power: 60 kW @ 3300 RPM
  • Maximum Torque: 190 Nm @ 1600-2400 RPM

Clutch

  • Type: 240mm Diameter, Single, Diaphragm Push Type, Cable Operated

Transmission

  • Gearbox: Fully Synchronized, 5 Speed Manual Gearbox with Cable Shift

Brakes

  • Type: Hydraulic Vacuum-Assisted Brakes
  • Front Brakes: Ventilated Discs
  • Rear Brakes: Drum

Suspension

  • Front Suspension: Overslung Parabolic (3 Leaves) - 2 Stage
  • Rear Suspension: Overslung Semi-Elliptic (3+3 Leaves) - 2 Stage

Tyres

  • Tyres Size: 215/75 R15 LT

Weight

  • Gross Vehicle Weight (GVW): 3490 Kg
  • Rated Payload: 1860 Kg

Seating Capacity

  • Capacity: 3 Seater - (1 Driver + 2 Co-Drivers)

Fuel Tank Capacity

  • Capacity: 50 litres

Dimensions

  • Length: 5025 mm
  • Width: 1842 mm
  • Height: 2061 mm
  • Wheelbase: 2590 mm
  • Load Body Dimensions (LxWxH): 2950 x 1750 x 415 mm
  • Loading Height: 945 mm

Performance

  • Maximum Speed: 110 km/h
  • Gradeability: 23.2%

Steering

  • Type: Power Assisted, Tiltable Column

Key Features

  1. Robust Engine: The 1.5l diesel engine with a turbocharger ensures efficient performance and durability.
  2. Efficient Transmission: The fully synchronized 5-speed manual gearbox provides smooth and precise gear shifts.
  3. Reliable Braking System: The combination of hydraulic vacuum-assisted brakes with ventilated discs in the front and drum brakes in the rear ensures safe and reliable stopping power.
  4. Comfortable Suspension: The overslung parabolic and semi-elliptic suspension systems offer a comfortable ride even on rough terrains.
  5. High Payload Capacity: With a gross vehicle weight of 3490 kg and a rated payload of 1860 kg, the Phoenix can handle substantial loads.
  6. Spacious Cabin: The truck accommodates three passengers, including the driver, providing ample space and comfort.
  7. Generous Fuel Tank: The 50-litre fuel tank capacity allows for extended driving range without frequent refueling stops.
  8. Compact Dimensions: Despite its capability, the truck maintains manageable dimensions for navigating urban and rural environments.
  9. Enhanced Safety: The vehicle’s structure and braking systems contribute to overall safety, making it a reliable choice for various transportation needs.
  10. Modern Steering: The power-assisted, tiltable steering column enhances maneuverability and driving comfort.
  • 1.5l, 3-cylinder diesel engine
  • 110 km/h, providing quick transit times
  • Accommodates 3 passengers
  • Fully synchronized 5-speed manual gearbox with cable shift
  • Hydraulic vacuum-assisted brakes
ENGINE WEIGHT
Engine 1.5l, 3 Cylinder Diesel Engine GVW 3490 Kg
Type Turbo Charged Intercooled with Lean NOx Trap (LNT) Rated Payload 1860 Kg
Displacement 1478cc SEATING CAPACITY
Maximum Power 60 kW @ 3300 RPM Capacity 3 Seater - (1 Driver + 2 Co-Drivers)
Maximum Torque 190 Nm @ 1600-2400 RPM FUEL TANK CAPACITY
CLUTCH Capacity 50 litres
Type 240mm Diameter, Single, Diaphragm Push Type, Cable Operated DIMENSIONS
TRANSMISSION Length 5025 mm
Gearbox Fully Synchronized, 5 Speed Manual Gearbox with Cable Shift Width 1842 mm
BRAKES Height 2061 mm
Type Hydraulic Vacuum-Assisted Brakes Wheelbase 2590 mm
Front Ventilated Discs Load Body Dimensions 2950 x 1750 x 415 mm
Rear Drum Loading Height 945 mm
SUSPENSION PERFORMANCE
Front Overslung Parabolic (3 Leaves) - 2 Stage Maximum Speed 110 km/h
Rear Overslung Semi-Elliptic (3+3 Leaves) - 2 Stage Gradeability 23.20%
TYRES STEERING
Tyres 215/75 R15 LT Type Power Assisted, Tiltable Column



General Information about the Ashok Leyland Phoenix Truck

The Ashok Leyland Phoenix truck is a versatile and robust light commercial vehicle tailored to meet the diverse transportation needs of businesses and individuals. With a strong emphasis on reliability and efficiency, the Phoenix truck is designed to handle both urban and rural logistics with ease. Its compact yet powerful 1.5-liter, 3-cylinder diesel engine, coupled with a turbocharged intercooler and Lean NOx Trap (LNT) technology, ensures optimal performance while maintaining fuel efficiency and reducing emissions. This engine configuration delivers a maximum power of 60 kW at 3300 RPM and a torque of 190 Nm between 1600-2400 RPM, providing sufficient power for various hauling tasks.

The Phoenix features a fully synchronized 5-speed manual gearbox with cable shift, enabling smooth and precise gear transitions. The truck’s clutch system, with a 240mm diameter single diaphragm push type, is cable-operated, ensuring reliable engagement and disengagement. Safety and control are paramount, with the vehicle equipped with hydraulic vacuum-assisted brakes, ventilated discs at the front, and drum brakes at the rear, ensuring effective braking performance under different load conditions.

Comfort and stability are key attributes of the Ashok Leyland Phoenix. The suspension system comprises an overslung parabolic setup with three leaves at the front and a semi-elliptic (3+3 leaves) configuration at the rear, both designed to provide a smooth and stable ride even on uneven surfaces. The truck's tyres, sized at 215/75 R15 LT, offer excellent traction and durability. With a gross vehicle weight of 3490 kg and a rated payload capacity of 1860 kg, the Phoenix is well-suited for transporting a variety of goods.

The Phoenix’s dimensions, including a length of 5025 mm, width of 1842 mm, and height of 2061 mm, along with a wheelbase of 2590 mm, ensure it remains compact enough for easy maneuverability while providing ample cargo space. The load body measures 2950 x 1750 x 415 mm, with a loading height of 945 mm, facilitating easy loading and unloading of goods. The truck's fuel tank has a capacity of 50 liters, allowing for extended driving ranges without frequent refueling stops.

Designed with the driver in mind, the Phoenix offers a seating capacity for three occupants, including the driver and two co-drivers, ensuring comfort during long journeys. The power-assisted, tiltable steering column enhances maneuverability and driving comfort, making it easier to navigate through tight spaces and challenging terrains. With a top speed of 110 km/h and a gradeability of 23.2%, the Phoenix is capable of handling steep inclines and varied road conditions.

In summary, the Ashok Leyland Phoenix truck is a reliable, efficient, and versatile light commercial vehicle, engineered to meet the demands of modern transportation. Its combination of a powerful engine, robust transmission, effective braking, and comfortable suspension systems make it an ideal choice for businesses seeking a dependable vehicle for their logistics needs.
