Description
  • Make Ashok Leyland
  • Model Captain 2523
  • Maximum Power 140 HP @ 2750 rpm
  • Battery 1 x 75 AH
  • Fuel Tank Capacity 90 L
  • Tyre 8.25X16, 16PR/7.50X16, 16PR
  • Front Suspension Parabolic, overslung suspension with Double acting Shock Absorbers
  • Rear Suspension Semi elliptic (main), overslung suspension with Double acting Shock Absorbers
  • Torque 360 Nm @ 1350-2750 rpm

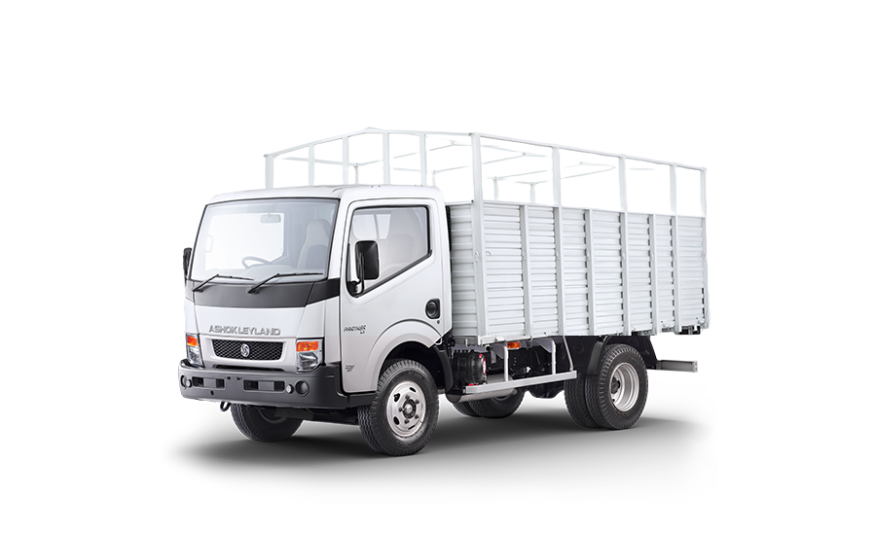

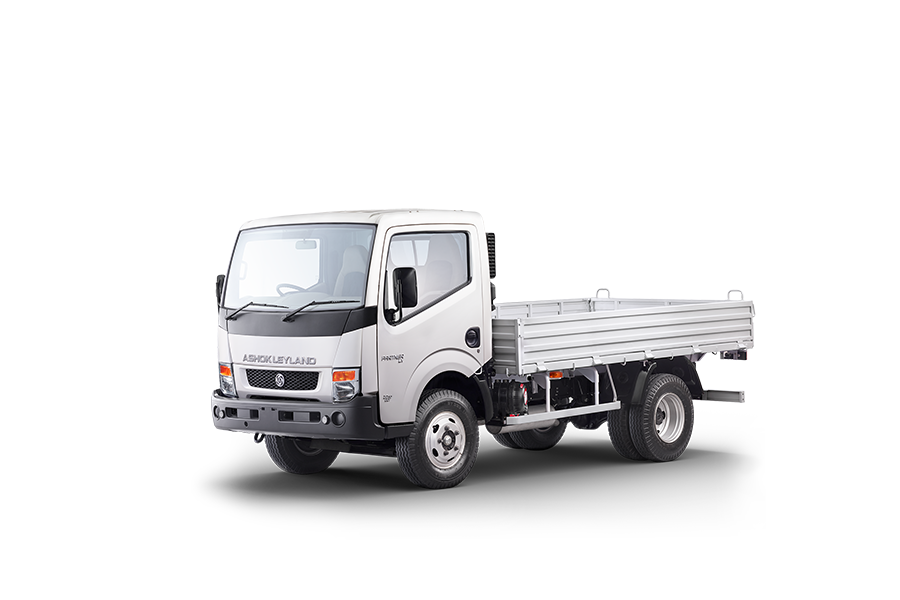

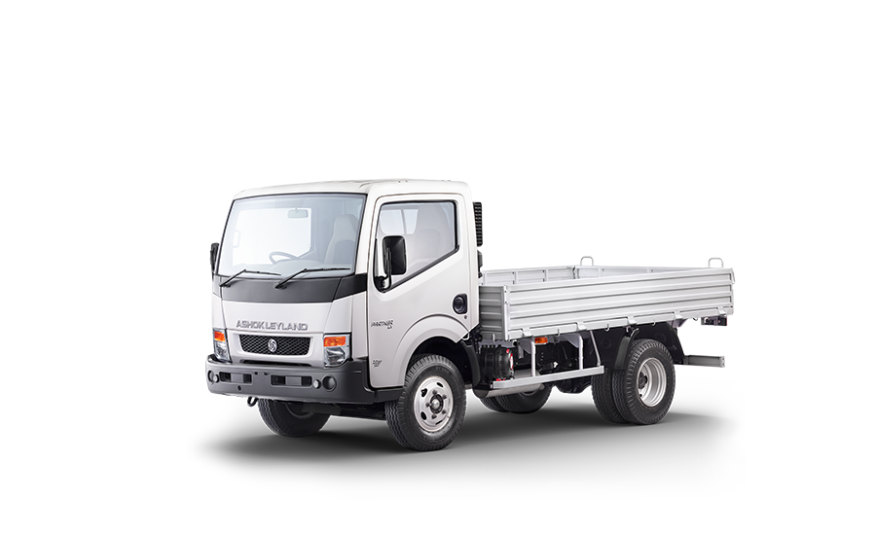

Ashok Leyland Partner Truck Overview

  • Engine Performance:
    • Advanced ZD30 diesel engine
    • High power and torque for demanding conditions
    • BS6 emission standards compliance
  • Transmission:
    • 5-speed manual transmission
    • Smooth and precise gear shifts
    • Optimized for fuel efficiency and performance
  • Chassis and Build:
    • Sturdy and durable chassis
    • Designed to handle heavy loads
    • Advanced suspension with parabolic leaf springs and shock absorbers
  • Driver Comfort:
    • Ergonomically designed, spacious cabin
    • Well-positioned steering wheel and adjustable driver seat
    • Digital instrument cluster for real-time information
    • High-quality audio system with USB and Bluetooth
  • Safety Features:
    • Reliable braking system with hydraulic vacuum-assisted brakes
    • Anti-lock Braking System (ABS) for enhanced control
    • Robust cabin structure for collision protection
    • Equipped with seat belts, fire extinguisher, and first-aid kit
  • Payload Capacity:
    • High payload capacity for various applications
    • Flexible body options for different business needs
  • Fuel Efficiency:
    • Large fuel tank capacity for extended range
    • Efficient fuel management system
  • Service and Support:
    • Extensive service network
    • Comprehensive warranty and support packages
  • Bottle Holder
  • Cable Type Gear Shift
  • Digital Clock (on instrument cluster)
  • Dual Tone Dash Board
  • ELR Seat Belt (Driver and Co-Driver)
  • Lockable Battery Box
  • Low Vacuum in Brake Booster Indicator
  • Reclining & Sliding Driver Seats
  • Tiltable Cabin
  • Tiltable Power Steering
Technical Specifications Partner (4-Tyre) Partner (6-Tyre)
10 ft LB 14 ft LB 11 ft LB 14 ft LB
Weight (kg)
Gross Vehicle Weight (kg) 6250 7200 7490 7490
Rated Payload (FSD) (kg) 3760 4565 4885 4775
Load Body Dimensions (mm)
Length 3160 4230 3415 4230
Width (HSD) 1960 2060 2060
Height FSD : 460 – HSD : 1840
Power Train
Engine Type ZD30 Diesel Engine with DDTi (Double Overhead Camshaft, Common Rail, Direct Injection, Turbo Intercooled)
Displacement 2953 cc
Maximum Power HP (@rpm) 140 HP @ 2750 rpm
Maximum Torque Nm (@rpm) 360 Nm @ 1350-2750 rpm
Clutch 310 mm Diameter, Diaphragm, Push type, Single dry plate , Hydraulic actuated
Transmission Fully syncronised 5 speed gearbox Manual – Kinetic
Fuel Tank Capacity 90 L
Emission Standard BS VI
Suspension & Tyres
Front Suspension Parabolic, overslung suspension with Double acting Shock Absorbers
No. of Leaf Springs (Front) Front 3 Front 3
Rear Suspension Semi elliptic (main), overslung suspension with Double acting Shock Absorbers
No. of Leaf Springs (Rear) 6 main + 2 Helper 6 main + 4 Helper
No. of Tyres Front 2, Rear 2, Spare 1 Front 2, Rear 4, Spare 1
Tyre Size 8.25X16, 16PR 7.50X16, 16PR
Loading Platform Height (mm) 1050 1035 1042 1035
Turning Circle Radius (TCR) (m) 6.2 7.5 5.7 6.75
Min. Ground Clearance 238 221
Overall Dimensions (mm)
Wheel Base 2685 3335 2820 3320
Overall Length 4920 5990 5170 5990
Overall Height FSD : 2250 FSD : 2250 FSD : 2240
HSD : 2850 HSD : 2810 HSD : 2832
Electricals
Battery 1 x 75 AH
Alternator 70A 70A (LS) 90A (LX)
Steering
Steering System Power Power
Brakes
Service Brake Vacuum assisted Hydraulic brake
Exhaust Brakes No Yes Yes Yes
Parking Brake Transmission mounted, Cable Operated
Performance
Gradeability 25% 25%

The Ashok Leyland Partner truck is designed to offer superior performance and reliability for a variety of commercial transportation needs. Powered by an advanced ZD30 diesel engine, the Partner delivers robust power and torque, ensuring efficient performance even under demanding conditions. This engine is known for its fuel efficiency and compliance with BS6 emission standards, making it both economical and environmentally friendly.

The truck is equipped with a 5-speed manual transmission that provides smooth and precise gear shifts. The transmission is optimized to enhance fuel efficiency and performance, making the Partner a versatile choice for urban and intercity transportation. The sturdy and durable chassis is designed to handle heavy loads with ease, while the advanced suspension system, including parabolic leaf springs and shock absorbers, ensures a comfortable ride even on rough roads.

Driver comfort is a priority in the Ashok Leyland Partner truck. The ergonomically designed cabin features a spacious interior with a well-positioned steering wheel and adjustable driver seat, reducing driver fatigue on long journeys. The cabin is also equipped with modern amenities such as a digital instrument cluster that provides real-time vehicle information, and a high-quality audio system with USB and Bluetooth connectivity for entertainment and communication on the go.

Safety is a key focus in the design of the Partner truck. It comes equipped with a reliable braking system, including hydraulic vacuum-assisted brakes and Anti-lock Braking System (ABS) for enhanced control and safety. The robust cabin structure provides additional protection in the event of a collision, and safety features such as seat belts, a fire extinguisher, and a first-aid kit ensure the well-being of the driver and passengers.

The Partner truck's payload capacity and flexible body options make it suitable for a wide range of commercial applications, from goods transportation to specialized logistics. Its large fuel tank capacity extends the truck’s range, reducing the need for frequent refueling stops and enhancing operational efficiency.

In addition to its robust performance and safety features, the Ashok Leyland Partner truck benefits from Ashok Leyland's extensive service network, ensuring that maintenance and repairs are easily accessible. Comprehensive warranty and support packages provide added peace of mind, making the Partner a reliable and cost-effective solution for businesses.

Overall, the Ashok Leyland Partner truck stands out as a dependable and efficient vehicle that combines power, durability, comfort, and safety, making it an ideal choice for various commercial transportation needs.
