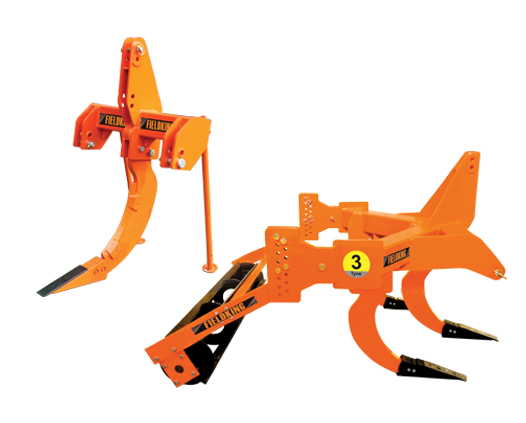

Heavy Duty Sub Soiler
The Fieldking Heavy Duty Sub Soiler comes in three models, FKHDSS - 1, FKHDSS - 2 and FKHDSS - 3, with varying dimensions and specifications. Here's an overview:
FKHDSS - 1:
- Length: 690 mm / 27"
- Width: 800 mm / 31"
- Height: 1220 mm / 48"
- Width of Cut: 70 mm / 3"
- Weight: 105 kg / 232 lbs
- Tractor Power: 40-65 HP
FKHDSS - 2:
- Length: 1072 mm / 42"
- Width: 1230 mm / 48"
- Height: 1440 mm / 57"
- Width of Cut: 800 mm / 32"
- Weight: 450 kg / 992 lbs
- Tractor Power: 60-75 HP
FKHDSS - 3:
-
- Length: 1520 mm / 60"
- Width: 1215 mm / 48"
- Height: 525 mm / 21"
- Weight: 520 kg / 1147 lbs
- Tractor Power: 90-115 HP
- Adjustable Working Depth
- All models use a Category II 3-point linkage for easy attachment to compatible tractors
- Crumblers (FKHDSS - 2 & FKHDSS - 3)
- Reduces soil compaction and promotes root growth
- The design provides ample ground clearance to avoid obstacles in the field
- The heavy-duty design ensures durability and long-lasting performance
| DESCRIPTION | FKHDSS - 1 | FKHDSS - 2 | FKHDSS - 3 |
| Length (mm / Inch) | 690 / 27" | 1072 / 42" | |
| Width (mm / Inch) | 800 / 31" | 1230 / 48" | 1520 / 60" |
| Height (mm / Inch) | 1220 / 48" | 1440 / 57" | |
| Width of Cut (mm / Inch) | 70 / 3" | 800 / 32" | 1215 / 48" |
| Tyne Spacing (mm / Inch) | NA | 695 / 27" | 525 / 21" |
| Working Depth (Max. mm / Inch) | 700 / 28" | ||
| Tyne Section (mm / Inch) | 150 / 6" x 36 / 1.4" | ||
| 3 Point Linkage | Cat - II | ||
| No. of Tyne | 1 | 2 | 3 |
| Crumbler (mm / Inch) | NA | 50 / 2" x 12 mm (T) Flat | |
| Crumbler Length (mm / Inch) | NA | 1396 / 55" | 1786 / 70" |
| Weight (Kg./Lbs. Approx.) | 105 / 232 | 450 / 992 | 520 / 1147 |
| Shovel (mm / Inch) | 70 / 28" x 305 / 12" x 10 mm (T) | ||
| Tractor Power (HP) | 40-65 | 60-75 | 90-115 |
The Fieldking Heavy Duty Sub Soiler is a robust agricultural implement designed for deep soil tillage, breaking up hardpans, and improving aeration and water infiltration. It comes in three models, FKHDSS - 1, FKHDSS - 2, and FKHDSS - 3, each with its unique specifications to suit different needs and tractor power requirements.
FKHDSS - 1** is the smallest model, with a length of 690 mm (27 inches) and a width of 800 mm (31 inches). It features a 70 mm (3 inches) width of cut and weighs 105 kg (232 lbs). Recommended for tractors with 40-65 HP. This model is suitable for smaller farms or those with lighter soil conditions.
FKHDSS - 2** is a mid-range model with a length of 1072 mm (42 inches) and a width of 1230 mm (48 inches). It boasts a wider cut of 800 mm (32 inches) and weighs 450 kg (992 lbs). Designed for tractors with 60-75 HP, this model offers increased capacity and efficiency for medium-sized farms or areas with challenging soil.
FKHDSS - 3** is the largest and most powerful model, measuring 1520 mm (60 inches) in length and 1215 mm (48 inches) in width. It features a 1215 mm (48 inches) width of cut and weighs 520 kg (1147 lbs). This model requires tractors with 90-115 HP and is ideal for large farms or areas with heavy, compact soil.
All models are equipped with a Category II 3-point linkage for easy attachment to compatible tractors. The FKHDSS - 2 and FKHDSS - 3 models come with a crumbler for better soil finishing. Each model offers various features such as adjustable working depth, robust construction, and high clearance, ensuring optimal performance and longevity.
