Disc Plough (Domestic)
- Adjustable tillage width from 700 mm to 1310 mm to suit various field sizes
- Available for maintaining consistent ploughing depth across different terrains
- Forged point and 10 mm plough shear for efficient soil cutting and turning
- Optional 2+1 and 3+1 furrow configurations for flexibility in operation
- Shear bolt system protects against overload and damage
- Steel frame box and boron steel tyne for robustness and longevity
| Model | Number of Furrows | Frame Box (Steel) | Tyne (Boron Steel) | Mould Board (mm) | Plough Shear (mm) | Point (Forged) | Head Stock (mm) | Tillage Width (Adjustable) | Working Depth (mm) | Safety | Depth Wheel (Optional) | Weight (Approx.) | Tractor Power (HP) |
| FKJMBP-36-2 | 2 | 118/5" x 118/5" x 9 mm | 80/3.1" x 36/1.4" | 8 | 10 | 100/4" x 15 mm | 118/5" x 118/5" x 9 mm | 700/28" | 280 | Shear Bolt | No | 350 kg (772 lbs) | 50-70 HP |
| FKJMBP-36-3 | 3 (2 + 1 Optional) | 118/5" x 118/5" x 9 mm | 80/3.1" x 36/1.4" | 8 | 10 | 100/4" x 15 mm | 118/5" x 118/5" x 9 mm | 1010/40" | 280 | Shear Bolt | Yes | 420 kg (926 lbs) | 70-90 HP |
| FKJMBP-36-4 | 4 (3 + 1 Optional) | 118/5" x 118/5" x 9 mm | 80/3.1" x 36/1.4" | 8 | 10 | 100/4" x 15 mm | 118/5" x 118/5" x 9 mm | 1310/52" | 280 | Shear Bolt | Yes | 530 kg (1168 lbs) | 90-110 HP |

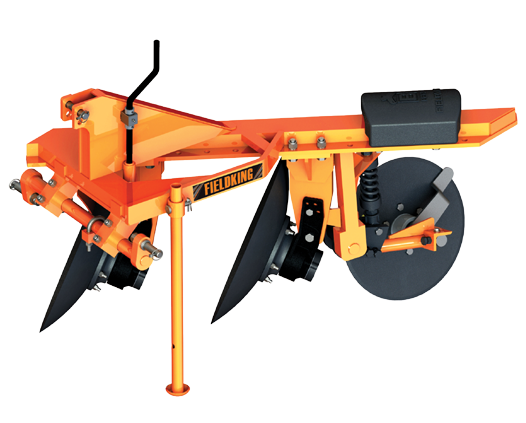

The Fieldking Disc Plough (Domestic) series is designed to offer robust performance and reliability in agricultural ploughing operations, catering to medium to heavy-duty tasks with precision and efficiency. Available in three models—FKJMBP-36-2, FKJMBP-36-3, and FKJMBP-36-4—these ploughs are tailored to suit various farming needs, offering options for 2, 3 (with an optional 2+1 configuration), and 4 (with an optional 3+1 configuration) furrows respectively.
Each model features a sturdy steel frame box measuring 118/5" x 118/5" x 9 mm, ensuring durability and structural integrity during operation. The tyne, crafted from boron steel, measures 80/3.1" x 36/1.4", facilitating effective soil cutting and enhanced wear resistance. The plough shear and mould board are 10 mm and 8 mm thick respectively, further enhancing durability and performance efficiency over extended use.
Forged points, measuring 100/4" x 15 mm, contribute to efficient soil penetration and turning. The head stock, also constructed from 118/5" x 118/5" x 9 mm steel, provides additional strength and stability during operation, ensuring reliability in varying field conditions.
The tillage width is adjustable across the models, ranging from 700 mm (28 inches) for the FKJMBP-36-2, up to 1310 mm (52 inches) for the FKJMBP-36-4, offering flexibility to accommodate different field sizes and operational requirements. These disc ploughs provide a working depth of 280 mm, adjustable to suit specific soil preparation needs.
Safety is prioritized with a shear bolt mechanism designed to protect against overload and potential damage during operation, ensuring longevity and minimizing maintenance requirements. Depending on specific operational needs, an optional depth wheel is available for maintaining consistent ploughing depths across varying terrains.
The weights of the models vary to support their robust build and capability, approximately ranging from 350 kg (772 lbs) for the FKJMBP-36-2, to 530 kg (1168 lbs) for the FKJMBP-36-4. This ensures stability and effective performance without compromising tractor efficiency.
Compatible with tractors ranging from 50 HP to 110 HP, the Fieldking Disc Plough (Domestic) series offers versatility and reliability essential for modern farming practices. Whether for breaking new ground, preparing seedbeds, or managing crop residue, these ploughs are engineered to deliver consistent, efficient, and durable performance in agricultural fields.
