Cargo 1518

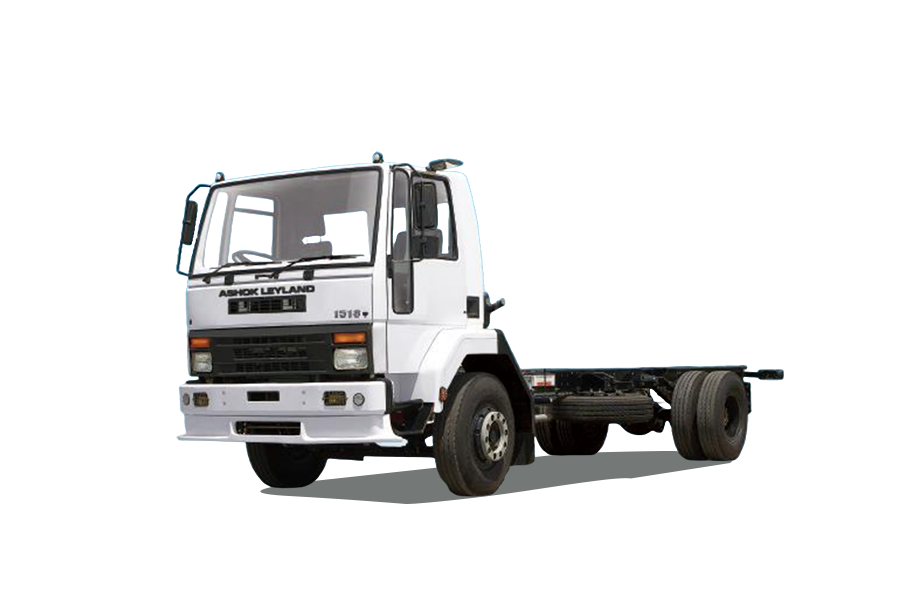

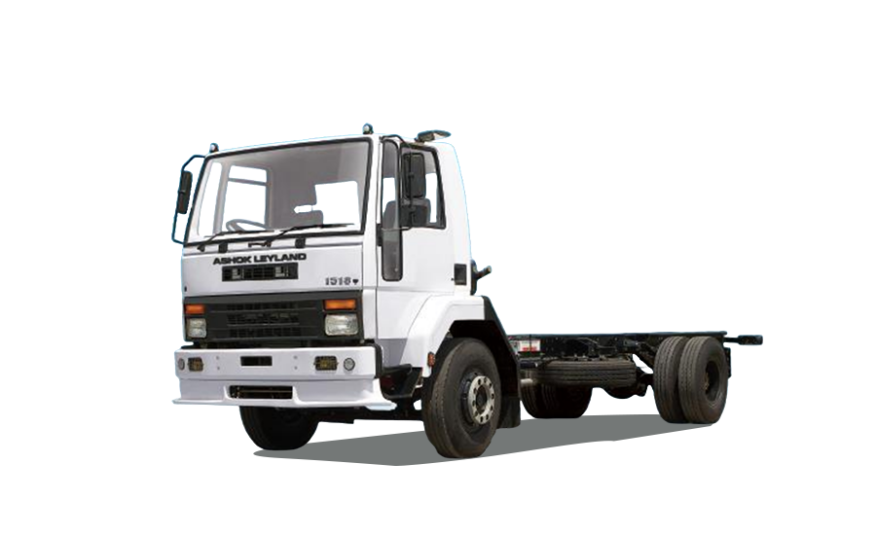

The Ashok Leyland Cargo 1518 truck is designed to deliver outstanding performance, efficiency, and reliability. Powered by a robust 6-cylinder turbocharged intercooled diesel engine, this truck adheres to Euro III emission norms, ensuring it meets environmental standards while providing powerful performance. With a maximum power output of 180 PS at 2400 RPM and a maximum torque of 550 Nm at 1400-1700 RPM, the Cargo 1518 is built to handle heavy-duty applications with ease.

Transmission is smooth and efficient with the ZF S6-36 6-speed synchromesh gearbox, which includes an overdrive feature. The clutch system is designed for durability and ease of use, featuring an air-boosted hydraulically actuated diaphragm clutch with a 380mm diameter.

The truck's axles are engineered for strength and longevity. The front axle is a forged "I" section reverse Elliot type, while the rear axle is a fully floating single-speed hypoid gear with a ratio of 4.33:1. These specifications ensure that the Cargo 1518 can handle substantial loads and challenging driving conditions.

For suspension, the truck is equipped with semi-elliptic multi-leaf springs with a stabiliser bar at the front and double-acting telescopic shock absorbers, providing a smooth and stable ride. The longitudinal ladder-type frame with dimensions of 204 x 76 x 6mm ensures a robust structural foundation.

Safety is a priority with the Ashok Leyland Cargo 1518, featuring a full-air dual-line 'S' cam braking system and spring actuated parking brakes on the rear axle. The ZF integral power-assisted recirculating ball-type steering system offers precise control and ease of handling.

The truck rides on 825 X 20, 14PR tyres, contributing to its stability and load-bearing capabilities. It has a gross vehicle weight (GVM) of 15,200 kg, an unladen weight of 5,030 kg, and a rated payload capacity of 10,170 kg, making it suitable for a wide range of transport needs.

Dimensionally, the Cargo 1518 has a wheelbase of 4200mm, an overall length of 7535mm, a width of 2207mm, and a height of 2685mm. It also features a minimum ground clearance of 245mm and a turning circle diameter of 16.18 meters, ensuring maneuverability in various conditions.

Fuel efficiency is supported by a substantial 212-litre fuel tank, allowing for extended range operations. The truck also incorporates several driver comfort features, including an ergonomically designed cabin, adjustable driver seat with lumbar support, and a digital instrument cluster. Ample storage compartments and additional interior features enhance the driving experience.

Ashok Leyland offers extensive service and support networks for the Cargo 1518, ensuring comprehensive warranty and maintenance packages are readily available to keep the truck in optimal working condition.
