Captain 2523

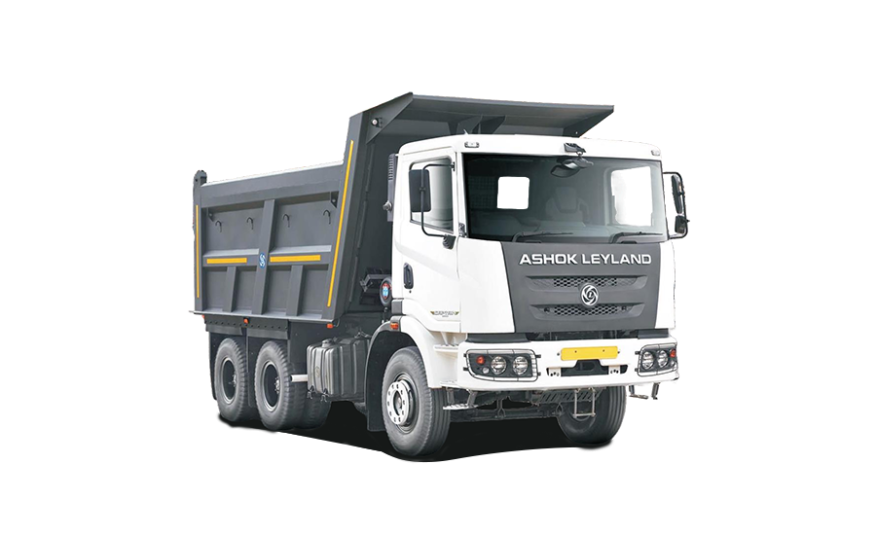

Ashok Leyland Captain 2523 Truck Overview
- Engine Performance:
- Powerful engine delivering high torque
- Turbocharged with intercooler for enhanced power
- Compliant with BS6 emission standards for reduced environmental impact
- Transmission:
- 9-speed manual transmission for better control and efficiency
- Optimized gear ratios for superior performance and fuel economy
- Chassis and Build:
- Heavy-duty chassis designed for high load-bearing capacity
- Reinforced construction for enhanced durability and longevity
- Suspension System:
- Advanced suspension system with semi-elliptical leaf springs
- Shock absorbers for improved ride comfort and stability, even with heavy loads
- Braking System:
- Full-air dual-circuit braking system for reliable stopping power
- Anti-lock Braking System (ABS) for added safety and control
- Driver Comfort:
- Spacious and ergonomically designed cabin
- Adjustable driver seat with lumbar support for reduced fatigue
- Tilt and telescopic steering for easy maneuverability
- Optional air conditioning for a comfortable driving environment
- Interior Features:
- Digital instrument cluster with real-time vehicle information
- Ample storage compartments for driver convenience
- High-quality audio system with USB and Bluetooth connectivity
- Safety Features:
- Reinforced cabin structure for enhanced safety in case of collisions
- Equipped with seat belts, fire extinguisher, and first-aid kit
- Payload Capacity:
- High payload capacity suitable for various heavy-duty applications
- Flexible body options to cater to different business requirements
- Fuel Efficiency:
- Large fuel tank for extended range
- Efficient fuel management system to optimize fuel usage
- Service and Support:
- Extensive service network for easy maintenance and repairs
- Comprehensive warranty and support packages for peace of mind
These points provide a comprehensive overview of the Ashok Leyland Captain 2523 truck, highlighting its performance, durability, comfort, safety, and efficiency.
- 9-speed manual transmission
- Digital instrument cluster with real-time information
- Extensive service network for easy maintenance
- Flexible body options for different business needs
- Full-air dual-circuit brakes
- Heavy-duty chassis with high load-bearing capacity
- High-torque turbocharged engine
- Seat belts for driver and co-driver
- Semi-elliptical leaf springs
- Spacious and ergonomically designed cabin
Engine | H Series, Common Rail System (CRS), BS III | Battery | 24V (2x12V), 150 AH (for AC). 130 AH (for Non-AC) |
Maximum Power | 225HP @ 2500 rpm | Tyres | 11x20-16 PR (Optional : 11x20-18 PR with mine lug) |
Maximum Torque | 800 Nm @ 1400-1900 rpm | Performance | |
Clutch | 15'' Diameter (381mm) Hi-Dur Ceramic Clutch with Clutch Boosters | Max. Speed in top Gear | 80 kmph |
Gear Box | 9-speed with 8.83:1 FGR and 12.73:1 CGR with Cable Shift Mechanism | Gradeability (with Crawler Gear) | 46.30% |
Front Axle | Forged 'I' Section, Reverse Elliot Type | Weight (kgs) | |
Rear Axle | Fully-Floating Single-speed Hypoid with 6.17:1 RAR | Unladen | 16 cum box |
Frame Dimension | 279x90x8mm Joggled Bolted Frame with 6 cross Members | Laden | 14 cum rock |
Suspension | Front: Semi-elliptic, Multi-Leaf with Anti-Roll Bar and Shock Absorbers Rear: Heavy-duty Bogie Suspension with V-rod | Front Axle | 4770 |
Brakes | Full-air, dual-line | Rear Axle | 7490 |
Parking Brakes | Flick-valve operated pneumatic on rear wheels only | Total | 12260 |
Fuel Tank Capacity | 200 L Cross-linked polymer Tank |
The Ashok Leyland Captain 2523 truck is a robust and reliable commercial vehicle designed to meet the demands of heavy-duty transportation. It is equipped with a powerful turbocharged engine that delivers high torque, ensuring excellent performance even under heavy loads. The engine complies with BS6 emission standards, making it an environmentally friendly option that reduces the carbon footprint while maintaining superior power and efficiency.
The truck features a 9-speed manual transmission, which provides smooth and efficient gear shifts, enhancing both fuel economy and overall performance. The optimized gear ratios are designed to offer better control and driveability, making it suitable for a variety of challenging terrains and long-haul journeys.
Built on a heavy-duty chassis, the Captain 2523 is reinforced with high-strength materials to ensure durability and longevity. The advanced suspension system, comprising semi-elliptical leaf springs and shock absorbers, provides exceptional ride comfort and stability, even when carrying heavy loads. This makes it a dependable choice for businesses that require reliable and consistent performance in their transportation operations.
Driver comfort is a key focus in the design of the Ashok Leyland Captain 2523. The spacious cabin is ergonomically designed to reduce driver fatigue, featuring an adjustable driver seat with lumbar support and a tilt and telescopic steering column for easy maneuverability. Optional air conditioning is available to ensure a comfortable driving environment in various weather conditions.
The interior of the truck is equipped with modern amenities, including a digital instrument cluster that provides real-time vehicle information, ample storage compartments for convenience, and a high-quality audio system with USB and Bluetooth connectivity for entertainment and connectivity on the go.
Safety is paramount in the Ashok Leyland Captain 2523. The truck is equipped with a full-air dual-circuit braking system that ensures reliable stopping power, while the Anti-lock Braking System (ABS) enhances control and safety. The reinforced cabin structure provides additional protection in the event of a collision, and the truck comes equipped with seat belts, a fire extinguisher, and a first-aid kit to further ensure the safety of the driver and passengers.
With its high payload capacity, the Captain 2523 is versatile and capable of handling various heavy-duty applications. The flexible body options allow businesses to customize the truck according to their specific needs, making it an ideal choice for a wide range of commercial uses.
The truck's large fuel tank capacity and efficient fuel management system ensure extended range and better mileage, reducing the operational costs and downtime. Additionally, Ashok Leyland's extensive service network and comprehensive warranty and support packages provide peace of mind, ensuring that maintenance and repairs are easily accessible and efficient.
Overall, the Ashok Leyland Captain 2523 truck combines power, durability, comfort, safety, and efficiency, making it a valuable asset for any commercial transportation fleet.
