Loader

Boss 1218

  • Request More Info
  • Email to a Friend
  • PDF Brochure
  • Print
Boss 1218
Description
  • Make Ashok Leyland
  • Model Boss 1218
  • Maximum Power 180HP (132kW) @ 2400 rpm
  • Air Filter Type Fleetguard with Primary & Safety Element
  • Battery 110 Amp. Hr-2x12 V
  • Ground Clearance 200
  • Bore x Stroke 104 x 113 mm
  • Displacement 5759 cc
  • Fuel Tank Capacity 208 Liters
  • Tyre 245/70R19.5
  • Steering ZF Integral Power Assisted Recirculating Ball Type
  • Width/Length/Height (mm) 2297/7745/2520
  • Suspension Parabolic Leaf Springs with ARB
  • Torque 67 kgm (660 Nm) @ 1400-2000 rpm
  • Emission Euro III

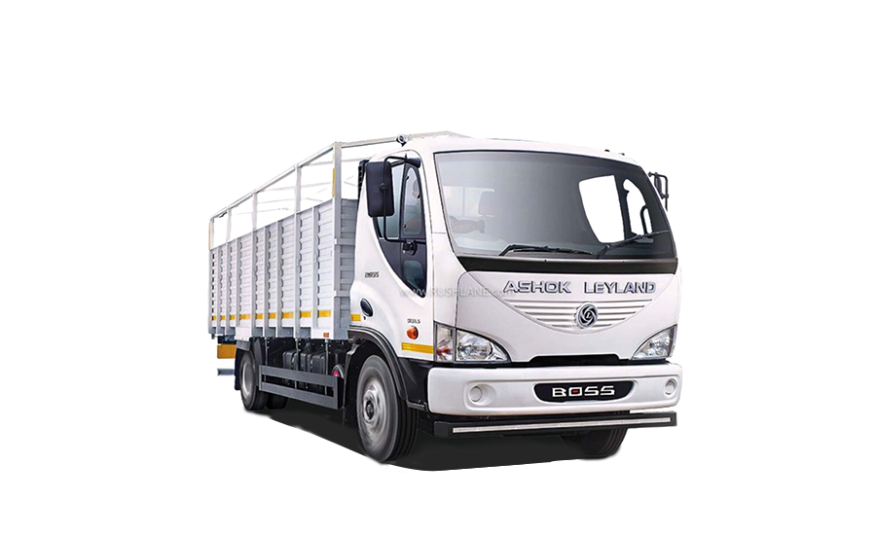

Ashok Leyland Boss 1218 Overview

  • Engine Performance:
    • High-performance H-series engine
    • Turbocharged with intercooler
    • Compliant with BS6 emission standards
  • Transmission:
    • 6-speed manual transmission
    • Optimized gear ratios for fuel economy and performance
  • Chassis and Build:
    • Robust chassis with high-strength materials
    • Reinforced for durability and load-bearing capacity
  • Suspension System:
    • Advanced suspension with semi-elliptical leaf springs
    • Shock absorbers for improved ride comfort and stability
  • Braking System:
    • Dual-circuit, full-air brakes
    • Anti-lock Braking System (ABS) for enhanced safety
  • Driver Comfort:
    • Ergonomically designed cabin
    • Tilt and telescopic steering
    • Adjustable driver seat with lumbar support
    • Optional air conditioning
  • Interior Features:
    • Digital instrument cluster
    • Spacious interior with ample storage
    • High-quality audio system with USB and Bluetooth
  • Safety Features:
    • Reinforced cabin structure
    • Seat belts, fire extinguisher, and first-aid kit
  • Payload Capacity:
    • High payload capacity for various applications
    • Flexible body options for different business needs
  • Fuel Efficiency:
    • Large fuel tank capacity
    • Efficient fuel management system
  • Service and Support:
    • Extensive service network
    • Comprehensive warranty and support packages
  • 6-speed manual transmission for smooth gear shifts
  • Digital instrument cluster with real-time vehicle information
  • Dual-circuit, full-air brakes for reliable stopping power
  • Ergonomically designed cabin for driver comfort
  • High payload capacity suitable for a variety of applications
  • High-performance H-series engine
  • Reinforced cabin structure for enhanced crash protection
  • Sturdy and durable body panels
  • Suspended Tiltable Day Cabin with HVAC as Optional
  • Telescopic Tiltable Steering
  • Wheelbase. 5200 MM
Engine HA6ETI3U 6 Cylinder Turbocharged Intercooled Diesel Additional Exhaust Brake
Bore x Stroke 104 x 113 mm Electrical System 24V
Displacement 5759 cc Battery 110 Amp. Hr-2x12 V
Max. Output 180HP (132kW) @ 2400 rpm Alternator 100 Amps
Max. Torque 67 kgm (660 Nm) @ 1400-2000 rpm Starter Motor 4.5 kW 24V
Emission Euro III Performance Data
Air Filter Fleetguard with Primary & Safety Element Max. Speed in top Gear 117 kmph
Fuel Filter Fleetguard Fuel Filter cum Water Separator Max. Gradeability 29%
Fuel Tank Capacity 208 Liters Plastic Tank Weights(kgs) 4500 WB 5100WB
Cooling Type Pump Circulated, Thermostal Controlled Pressurised Cooling with de-aeration Tank Front Axle 2588/2613
Clutch ZF S6-36-6 Speed Synchromesh with Overdrive Rear Axle 1482/1497
Propeller Shaft SPL 100 Unladen 4070/4110
No. of Shafts For 4500 WB - 2 nos. & 5100 WB-3 nos. GVW 11990
Rear Axle Fully Floating Single Speed Hypoid Gear Major Dimensions (mm)
Axle Capacity 8200 kg Wheel Base 4500/5100
Axle Ratio 3073:01:00 Front Overhang 1225/1225
Front Axle Forged 'I' Section Reverse elliot type Rear Overhang 2020/2420
Axle Capacity 4200 kg Overall Length 7745/8745
Frame Bolted Contruction Constant Width Over Chasis Overall Width 2297/2297
Frame Dimensions 204x63x7mm Overall Height 2520/2520
Suspension Parabolic Leaf Springs with ARB Front Track 1845/1845
Shock Absorber Double Acting Telescopic type Rear Track 1740/1740
Steering ZF Integral Power Assisted Recircultating Ball Type Frame Width 854/854
Drive Right hand drive/ Left hand drive Min Ground Clearance 200/200
Wheels & Tyres 2 nos. in front, 4 nos. in rear & spare 1 no. Turning Circle Diameter 14.8m/16.6m
Rim Size 19.5 x 6.75 Angle of Approach 18.3/18.3
Tyre Size 245/70R19.5 Angle of Departure 14.2/12.7
Brakes Full air dual line Caliper Operated Disc Brake Loading Span (ft) 18/21
Parking Brake Spring actuated Pneumatic on rear only Features Suspended Tiltable Day Cabin with HVAC as Optional

The Ashok Leyland Boss 1218 truck is designed to cater to a wide range of commercial transportation needs, combining power, efficiency, and reliability. It is equipped with a high-performance H-series engine that features turbocharging and an intercooler, ensuring robust power delivery while maintaining excellent fuel efficiency. This engine meets the stringent BS6 emission standards, highlighting Ashok Leyland's commitment to sustainability and environmental responsibility.

The truck's 6-speed manual transmission is engineered for smooth and precise gear shifts, optimized to enhance both fuel economy and performance. The robust chassis, reinforced with high-strength materials, is designed to handle heavy loads with ease, ensuring durability and long-term reliability. Additionally, the advanced suspension system, featuring semi-elliptical leaf springs and shock absorbers, provides superior ride comfort and stability, making it suitable for a variety of road conditions and load types.

Driver comfort and convenience are prioritized in the design of the Boss 1218. The ergonomically designed cabin features a tilt and telescopic steering column for easy maneuverability and an adjustable driver seat with lumbar support, reducing driver fatigue on long hauls. Optional air conditioning ensures a comfortable working environment, while the digital instrument cluster provides real-time vehicle information for better operational management. The spacious interior includes ample storage compartments and a high-quality audio system with USB and Bluetooth connectivity, enhancing the overall driving experience.

Safety is a key focus of the Ashok Leyland Boss 1218. The truck is equipped with a dual-circuit, full-air braking system that provides reliable stopping power, complemented by an Anti-lock Braking System (ABS) for enhanced safety and control. The reinforced cabin structure offers added protection in the event of a collision, and safety features such as seat belts, a fire extinguisher, and a first-aid kit further ensure the well-being of the driver and co-driver.

With a high payload capacity, the Boss 1218 is versatile enough to handle various commercial applications. Its flexible body options allow it to be customized to meet different business needs, from goods transportation to specialized logistics. The large fuel tank capacity extends the truck’s range, while the efficient fuel management system ensures better mileage, reducing operational costs.

Ashok Leyland's extensive service network and comprehensive warranty and support packages provide peace of mind, ensuring that maintenance and service requirements are easily met. Overall, the Ashok Leyland Boss 1218 truck stands out as a reliable and efficient vehicle that offers exceptional performance, comfort, and safety, making it a valuable asset for any commercial transportation fleet.
