Sub Soiler

  • Request More Info
  • Email to a Friend
  • PDF Brochure
  • Print
Sub Soiler Sub Soiler Sub Soiler Sub Soiler Sub Soiler
Description
  • Make Fieldking
  • Model Sub Soiler
  • Tyne (mm/inch) 150 / 6" x 25 mm (T)
  • Length (mm/inch) 510 / 20"-550 / 22"-830 / 33"-1554 / 61"
  • Height (mm/inch) 1060/42" - 1370/54"-1422/56"-1672/66"
  • Tractor Power 40-55/60-75/80-95/100-135

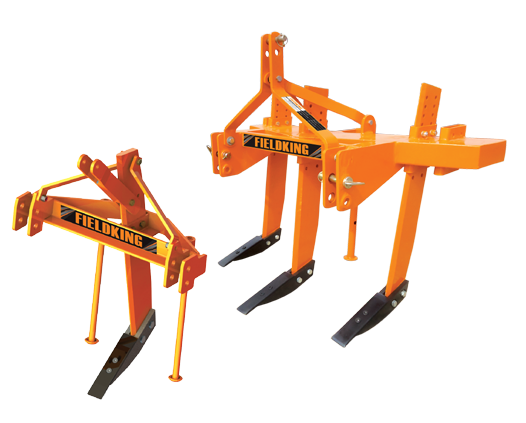

Fieldking Sub Soiler Overview:

  • The Fieldking Sub Soiler is a heavy-duty implement designed for breaking hardpan soil layers.
  • It helps in improving soil aeration and water infiltration by breaking up compacted soil.
  • This implement is ideal for deep tillage applications in agricultural fields.
  • The Fieldking Sub Soiler is robust and durable, making it suitable for tough field conditions.
  • It helps in reducing soil compaction, promoting root growth, and enhancing overall crop productivity.
  • Enhances overall crop productivity
  • Heavy-duty design for breaking hardpan soil layers
  • Ideal for deep tillage applications
  • Improves soil aeration and water infiltration
  • Reduces soil compaction and promotes root growth
  • Robust and durable construction for tough field conditions
DESCRIPTION FKSS - 1 FKSS - 2 FKSS - 3 FKSS - 5
Length (mm / Inch) 510 / 20" 550 / 22" 830 / 33" 1554 / 61"
Width (mm / Inch) 660 / 26" 1220 / 48" 1520 / 60" 2510 / 99"
Height (mm / Inch) 1060/42" - 1370/54" 1422/56"-1672/66"
Tillage Width (mm / Inch) 70 / 2.8" 708/28" - 960/38" 1055/42" - 1284/51" 1810/71"
Tyne To Tyne Distance (mm / Inch) NA 600/24"-863/34" 465/18"-576/23" 550/22"
Tyne (mm / Inch) 150 / 6" x 25 mm (T)
No. of Tyne 1 2 3 5
3 Point Linkage Cat - II Cat-ll & Cat-III
Working Depth (Max. mm / Inch) 550 / 22"
Crumbler (mm / Inch) NA 33.7/1.3" x 25 mm (T) Round Pipe 50/2" x 12 mm (T) Flat
Crumbler Length (mm / Inch) NA 1220 / 48" 1530 / 60" 2510 / 99"
Weight Without Crumbler (Kg. /Lbs. Approx.) 85 / 187 195 / 430 280 / 617 570 / 1257
Weight With Crumbler (Kg. /Lbs. Approx.) NA 245 / 540 430 / 948 790 / 1709
Tractor Power (HP) 40-55 60-75 80-95 100-135



Fieldking offers a range of Sub Soilers designed to meet the needs of modern farming practices. These heavy-duty implements are specifically engineered for breaking hardpan soil layers, improving soil aeration, and enhancing water infiltration in agricultural fields. The Fieldking Sub Soilers are ideal for deep tillage applications, ensuring the soil is properly loosened for better root growth and crop productivity.

With a robust construction and durable design, the Fieldking Sub Soilers are built to withstand tough field conditions and provide consistent performance over time. These implements help reduce soil compaction, which is crucial for maintaining healthy soil structure and promoting optimal plant growth.

By using a Fieldking Sub Soiler, farmers can effectively break up compacted soil layers, improve soil drainage, and enhance overall soil health. This results in better crop yields and improved farm productivity. Fieldking is committed to providing high-quality agricultural implements that meet the needs of modern farmers, and the Sub Soiler range is no exception.
